S202S02概述

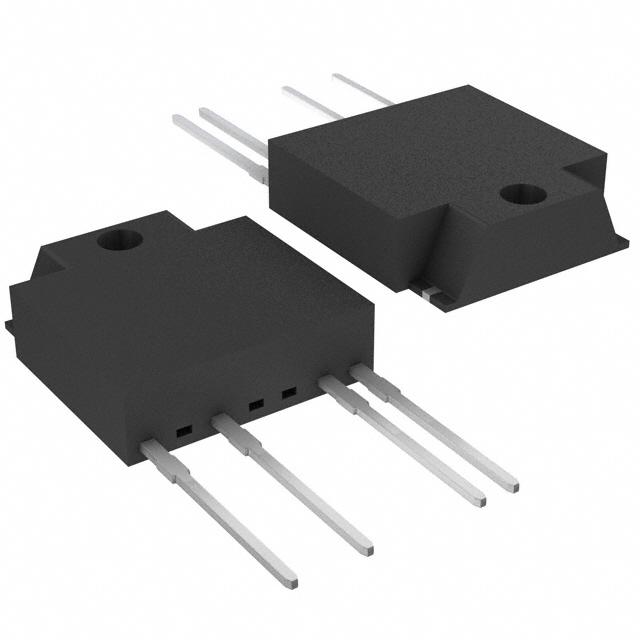

Relay SSR 50mA 1.4V DC-IN 8A 600V AC-OUT 4Pin SIP
■Features
1\. High radiation resin mold package
2\. RMS ON-state current
IT: 8 Arms at TC<= 80˚C With heat sink
3\. Built-in zero-cross circuit S102S02/
4\. High repetitive peak OFF-state voltage
S102S01/S102S02 VDRM: MIN. 400V
S202S01/S202S02 VDRM: MIN. 600V
5\. Isolation voltage between input and output Viso : 4 000Vrms
