STM32L062K8T6

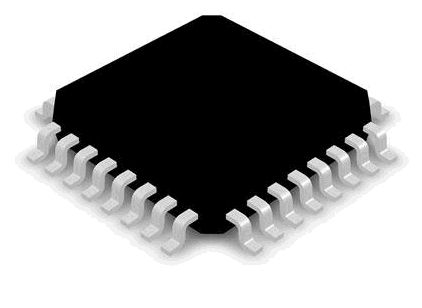

STMICROELECTRONICS  STM32L062K8T6  微控制器, 32位, 超低功率, ARM 皮质-M0+, 32 MHz, 2 KB, 8 KB, 32 引脚, LQFP

The ultra-low-power STM32L062x8 microcontrollers incorporate the connectivity power of the universal serial bus USB 2.0 crystal-less with the high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit MPU, high-speed embedded memories 64 Kbytes of Flash program memory, 2 Kbytes of data EEPROM and 8 Kbytes of RAM plus an extensive range of enhanced I/Os and peripherals.

The STM32L062x8 devices provide high power efficiency for a wide range of performance. It is achieved with a large choice of internal and external clock sources, an internal voltage adaptation and several low-power modes.

The STM32L062x8 devices offer several analog features, one 12-bit ADC with hardware oversampling, one DAC, two ultra-low-power comparators, AES, several timers, one low-power timer LPTIM, three general-purpose 16-bit timers and one basic timer, one RTC and one SysTick which can be used as timebases. They also feature two watchdogs, one watchdog with independent clock and window capability and one window watchdog based on bus clock.

Moreover, the STM32L062x8 devices embed standard and advanced communication interfaces: up to two I2Cs, one SPI, two USARTs, a low-power UART LPUART, and a crystal-less USB. The devices offer up to 14 capacitive sensing channels to simply add touch sensing functionality to any application.

The STM32L062x8 also include a real-time clock and a set of backup registers that remain powered in Standby mode.

The ultra-low-power STM32L062x8 devices operate from a 1.8 to 3.6 V power supply down to 1.65 V at power down with BOR and from a 1.65 to 3.6 V power supply without BOR option. They are available in the -40 to +125 °C temperature range. A comprehensive set of power-saving modes allows the design of low-power applications.

**Key Features**

.

Ultra-low-power platform

.

1.65 V to 3.6 V power supply

.

-40 to 125 °C temperature range

.

0.27 μA Standby mode 2 wakeup pins

.

0.4 μA Stop mode 16 wakeup lines

.

0.8 μA Stop mode + RTC + 8 KB RAM retention

.

88 μA/MHz in Run mode

.

3.5 μs wakeup time from RAM

.

5 μs wakeup time from Flash memory

.

Core: Arm® 32-bit Cortex®-M0+ with MPU

.

From 32 kHz up to 32 MHz max.

.

0.95 DMIPS/MHz

.

Memories

.

64 KB Flash memory with ECC

.

8KB RAM

.

2 KB of data EEPROM with ECC

.

20-byte backup register

.

Sector protection against R/W operation

.

Up to 29 fast I/Os 25 I/Os 5V tolerant

.

Reset and supply management

.

Ultra-safe, low-power BOR brownout reset with 5 selectable thresholds

.

Ultra-low-power POR/PDR

.

Programmable voltage detector PVD

.

Clock sources

.

32 kHz oscillator for RTC with calibration

.

High speed internal 16 MHz factory-trimmed RC +/- 1%

.

Internal low-power 37 kHz RC

.

Internal multispeed low-power 65 kHz to 4.2 MHz RC

.

Internal self calibration of 48 MHz RC for USB

.

PLL for CPU clock

.

Pre-programmed bootloader

.

USART, SPI supported

.

Development support

.

Serial wire debug supported

.

Rich Analog peripherals

.

12-bit ADC 1.14 Msps with 10 channels down to 1.65 V

.

12-bit 1 channel DAC with output buffers down to 1.8 V

.

2x ultra-low-power comparators window mode and wake up capability, down to 1.65 V

.

Up to 14 capacitive sensing channels supporting touchkey, linear and rotary touch sensors

.

7-channel DMA controller, supporting ADC, SPI, I2C, USART, DAC, Timers, AES

.

8x peripheral communication interfaces

.

1x USB 2.0 crystal-less, battery charging detection and LPM

.

2x USART ISO 7816, IrDA, 1x UART low power

.

3x SPI 16 Mbits/s

.

Up to 2x I2C SMBus/PMBus

.

9x timers: 1x 16-bit with up to 4 channels, 2x 16-bit with up to 2 channels, 1x 16-bit ultra-low-power timer, 1x SysTick, 1x RTC, 1x 16-bit basic for DAC, and 2x watchdogs independent/window

.

CRC calculation unit, 96-bit unique ID

.

True RNG and firewall protection

.

Hardware Encryption Engine AES 128-bit

.

All packages are ECOPACK®2
