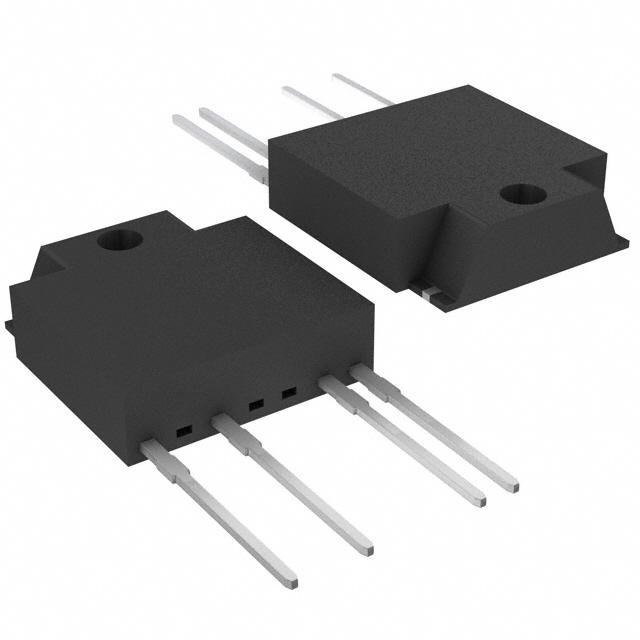

Relay SSR 50mA 1.4V DC-IN 2A 600V AC-OUT 4Pin SIP Sleeve
■ Description
S102T02 Series and Series Solid State Relays SSR are an integration of an infrared emitting diode IRED, a Phototriac Detector and a main output Triac. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 3.0kV isolation Visorms from input to out put.
■Features
1\. Output current, ITrms≤2.0A
2\. Zero crossing functionary VOX: MAX. 35V
3\. Slim 4 pin low profile SIP package
4\. High repetitive peak off-state voltage
VDRM: 600V, S202T02 Series
VDRM: 400V, S102T02 Series
5\. High isolation voltage between input and output
Visorms : 3.0kV
6\. Lead-free terminal components are also available
see Model Line-up section in this datasheet
7\. Screw hole for heat sink
■ Agency approvals/Compliance
1\. Isolated interface between high voltage AC devices and lower voltage DC control circuitry.
2\. Switching motors, fans, heaters, solenoids, and valves.
3\. Power control in applications such as lighting and temperature control equipment.
■Applications
1.Recognized by UL508, file No. E94758 as models No. S102T02/S202T02
2\. Approved by CSA 22.2 No.14, file No. LR63705 as models No. S102T02/S202T02
3\. Package resin : UL flammability grade 94V-0
