STM32F302C6T6

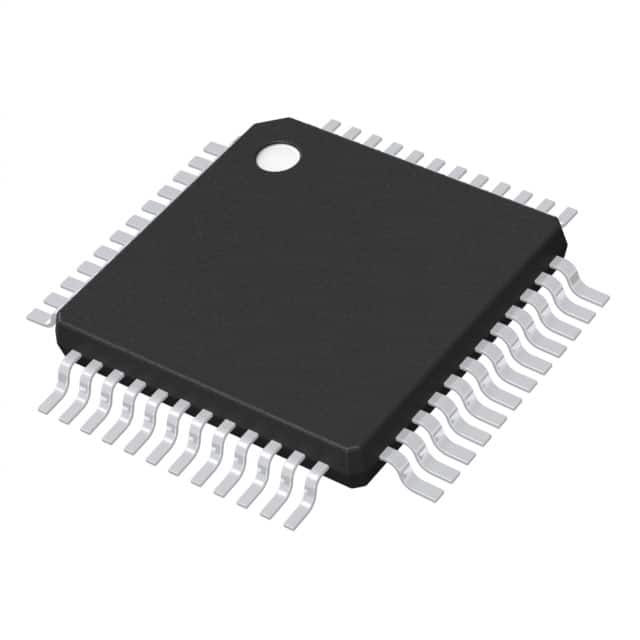

STMICROELECTRONICS  STM32F302C6T6  微控制器, 32位, 通用, ARM 皮质-M4, 72 MHz, 32 KB, 16 KB, 48 引脚, LQFP

The is a STM32 F3 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 72MHz and embedding a floating point unit FPU, high-speed embedded memories Flash memory up to 32kB and 16kB of SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The device offer a fast 12-bit ADCs, three comparators, an operational amplifier, up to 18 capacitive sensing channels, one DAC channel, a low-power RTC, one general-purpose 32-bit timer, one timer dedicated to motor control and up to three general-purpose 16-bit timers and one timer to drive the DAC, as well as standard and advanced communication interfaces - three I²Cs, two SPIs, two I²Ss, three USARTs, a CAN and an USB FS device.

.

ARM Cortex-M4 CPU with FPU, single-cycle multiplication and HW division, DSP instruction

.

CRC calculation unit

.

Power-on/Power down reset POR/PDR

.

Programmable voltage detector PVD

.

Low-power - Sleep, stop and standby

.

VBAT supply for RTC and backup registers

.

4 to 32MHz Crystal oscillator

.

32kHz Oscillator for RTC with calibration

.

8MHz Internal RC with x 16 PLL option

.

40kHz Internal oscillator

.

Interconnect matrix

.

Temperature sensor

.

2 x Watchdog timers Independent and window

.

SysTick Timer

.

Calendar RTC with alarm, periodic wakeup from Stop/Standby

.

USB 2.0 full speed interface

.

CAN interface 2.0B Active

.

Infrared transmitter

.

96-bit Unique ID
