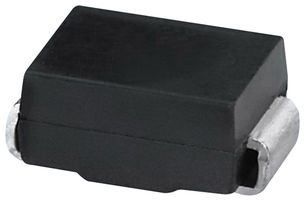

Rectifier Diode, Schottky, 1Element, 1A, 60V VRRM, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2Pin
肖特基 1A 表面贴装型 DO-214AC(SMA)
得捷:
DIODE SCHOTTKY 60V 1A DO214AC
贸泽:
Schottky Diodes & Rectifiers 1A, 60V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SS16-TP rectifier from Micro Commercial Components. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1 A. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C.
Chip1Stop:
Diode Schottky 60V 1A 2-Pin SMA T/R
Verical:
Rectifier Diode Schottky 60V 1A 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SS16-TP Schottky Rectifier, 60 V, 1 A, Single, DO-214AC, 2 Pins, 700 mV
Win Source:
DIODE SCHOTTKY 60V 1A DO214AC
额定电压DC 60.0 V
额定电流 1.00 A
电容 110 pF
输出电流 ≤1.00 A
正向电压 0.7 V
极性 Standard
热阻 28℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 700 mV
正向电流Max 1000 mA
工作温度Max 125 ℃
工作温度Min 55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
封装 DO-214AC
工作温度 55℃ ~ 125℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SS16-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
CD214A-B160LF 伯恩斯 | 功能相似 | SS16-TP和CD214A-B160LF的区别 |
SS16-E3/61T 威世 | 功能相似 | SS16-TP和SS16-E3/61T的区别 |
SS16 安森美 | 功能相似 | SS16-TP和SS16的区别 |
