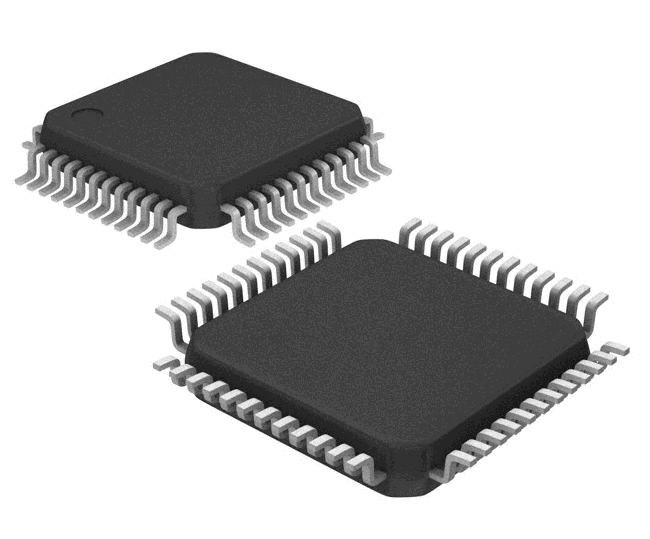

STMICROELECTRONICS STM32F372C8T6 芯片, 微控制器, 32位, CORTEX-M4F, 72MHZ, LQFP-48
The is a STM32 F3 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M4F RISC core operating at a frequency of up to 72MHz and embedding a floating point unit FPU, a memory protection unit MPU and an embedded trace macrocell ETM, high-speed embedded memories Flash memory up to 64kB and 16kB of SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The device offer one fast 12-bit ADCs, 16-bit sigma-delta Σ-Δ ADCs, two comparators, up to two DACs DAC1 with 2 channels and DAC2 with 1 channel, a low-power RTC, 9 general-purpose 16-bit timers, two general-purpose 32-bit timers, three basic timers, as well as standard and advanced communication interfaces - two I²Cs, three SPIs, three I²Ss, three USARTs, a CAN and an USB device.
电源电压DC 2.00V min
针脚数 48
时钟频率 72.0 MHz
RAM大小 16 KB
位数 32
耗散功率 364 mW
输入/输出数 36 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 364 mW
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 48
封装 LQFP-48
长度 7 mm
宽度 7 mm
高度 1.6 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tray
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STM32F372C8T6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STM32F373C8T6 意法半导体 | 完全替代 | STM32F372C8T6和STM32F373C8T6的区别 |
