STM32F091VBT6

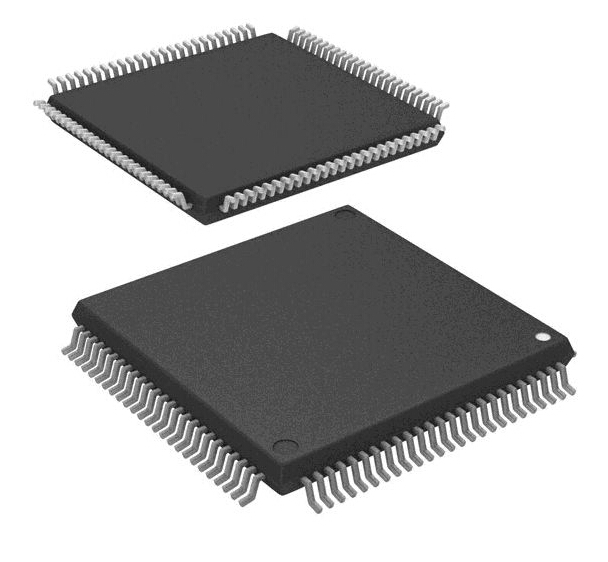

STM32F091VBT6图片1
STM32F091VBT6图片2
STM32F091VBT6图片3
STM32F091VBT6图片4
STM32F091VBT6图片5
STM32F091VBT6图片6
STM32F091VBT6概述

STMICROELECTRONICS  STM32F091VBT6  微控制器, 32位, 线路接入, ARM 皮质-M0, 48 MHz, 128 KB, 32 KB, 100 引脚, LQFP

The is an entry level STM32 F0 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M0 RISC core operating at a 48MHz frequency, high speed embedded memories Flash memory up to 128kB and SRAM up to 32KB and an extensive range of enhanced peripherals and I/Os. This device offer standard communication interfaces two I²Cs, two SPIs, two I²Ss, one HDMI CEC and eight USARTs, one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced control PWM timer.

.
CRC calculation unit
.
Power-on/Power-down reset POR/PDR
.
Programmable voltage detector PVD
.
Low-power modes - Sleep, stop, standby
.
VBAT supply for RTC and backup registers
.
4 to 32MHz Crystal oscillator
.
32kHz Oscillator for RTC with calibration
.
Internal 8MHz RC with x6 PLL option
.
Internal 40kHz RC oscillator
.
Internal 48MHz Oscillator with automatic trimming
.
12-channel DMA Controller
.
Two fast low-power analog comparators with programmable input and output
.
Up to 24 capacitive sensing channels for touchkey, linear and rotary touch sensors
.
Calendar RTC with alarm and periodic wakeup from Stop/Standby
.
Independent and system watchdog timers
.
SysTick Timer
.
CAN interface
.
HDMI CEC, wakeup on header reception
.
Serial wire debug SWD
.
96-bit Unique ID
STM32F091VBT6中文资料参数规格
技术参数

针脚数 100

时钟频率 48.0 MHz

RAM大小 32 KB

位数 32

模数转换数ADC 1

输入/输出数 87 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 476 mW

数模转换数DAC 1

电源电压Max 3.6 V

电源电压Min 2 V

封装参数

引脚数 100

封装 LQFP-100

外形尺寸

封装 LQFP-100

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tray

制造应用 Audio, 成像, 自动化与过程控制, Portable Devices, 消费电子产品, Automation & Process Control, 便携式器材, Communications & Networking, Security, Computers & Computer Peripherals, 计算机和计算机周边, 通信与网络, 视频和目视, Consumer Electronics, Industrial, Imaging, Video & Vision, HVAC, 音频, 安全, 工业, 成像, 视频和目视

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 3A991A2

数据手册

在线购买STM32F091VBT6
型号: STM32F091VBT6
描述:STMICROELECTRONICS  STM32F091VBT6  微控制器, 32位, 线路接入, ARM 皮质-M0, 48 MHz, 128 KB, 32 KB, 100 引脚, LQFP
替代型号STM32F091VBT6
型号/品牌 代替类型 替代型号对比

STM32F091VBT6

ST Microelectronics 意法半导体

当前型号

当前型号

STM32F091VBT7

意法半导体

完全替代

STM32F091VBT6和STM32F091VBT7的区别
