STM32F091RCT6概述

STMICROELECTRONICS  STM32F091RCT6  微控制器, 32位, 线路接入, ARM 皮质-M0, 48 MHz, 256 KB, 32 KB, 64 引脚, LQFP

The is a 32-bit Microcontroller Unit incorporates the high-performance ARM® Cortex®-M0 RISC core operating at a 48MHz frequency, high-speed embedded memories 256kB of flash memory and 32kB of SRAM and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces, one CAN and one 12-bit ADC, one 12-bit DAC with two channels, seven general purpose 16-bit timers, one 32-bit timer and an advanced-control PWM timer.

.
Power-on/power down reset
.
Programmable voltage detector
.
Low power modes - Sleep, stop and standby
.
VBAT supply for RTC and backup registers
.
All mappable on external interrupt vectors
.
Up to 24 capacitive sensing channels supporting touch key, linear and rotary touch sensors
.
Two fast low-power analogue comparators with programmable input and output
.
Independent and system watchdog timers
.
SysTick timer
.
HDMI CEC, wakeup on header reception
.
Serial wire debug
.
96-bit Unique ID

ESD sensitive device, take proper precaution while handling the device.

STM32F091RCT6中文资料参数规格
技术参数

频率 48 MHz

工作电压 2V ~ 3.6V

针脚数 64

时钟频率 48.0 MHz

RAM大小 32 KB

位数 32

耗散功率 455 mW

FLASH内存容量 256 KB

模数转换数ADC 1

输入/输出数 52 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 455 mW

数模转换数DAC 1

电源电压Max 3.6 V

电源电压Min 2 V

封装参数

安装方式 Surface Mount

引脚数 64

封装 LQFP-64

外形尺寸

封装 LQFP-64

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Communications & Networking, Industrial, Imaging, Video & Vision, 通信与网络, 信号处理, Portable Devices, Security, Computers & Computer Peripherals, 视频和目视, 安全, 工业, 便携式器材, Signal Processing, HVAC, 成像, Consumer Electronics, 计算机和计算机周边, 成像, 视频和目视, 消费电子产品

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 3A991A2

数据手册

STM32F091RCT6引脚图与封装图

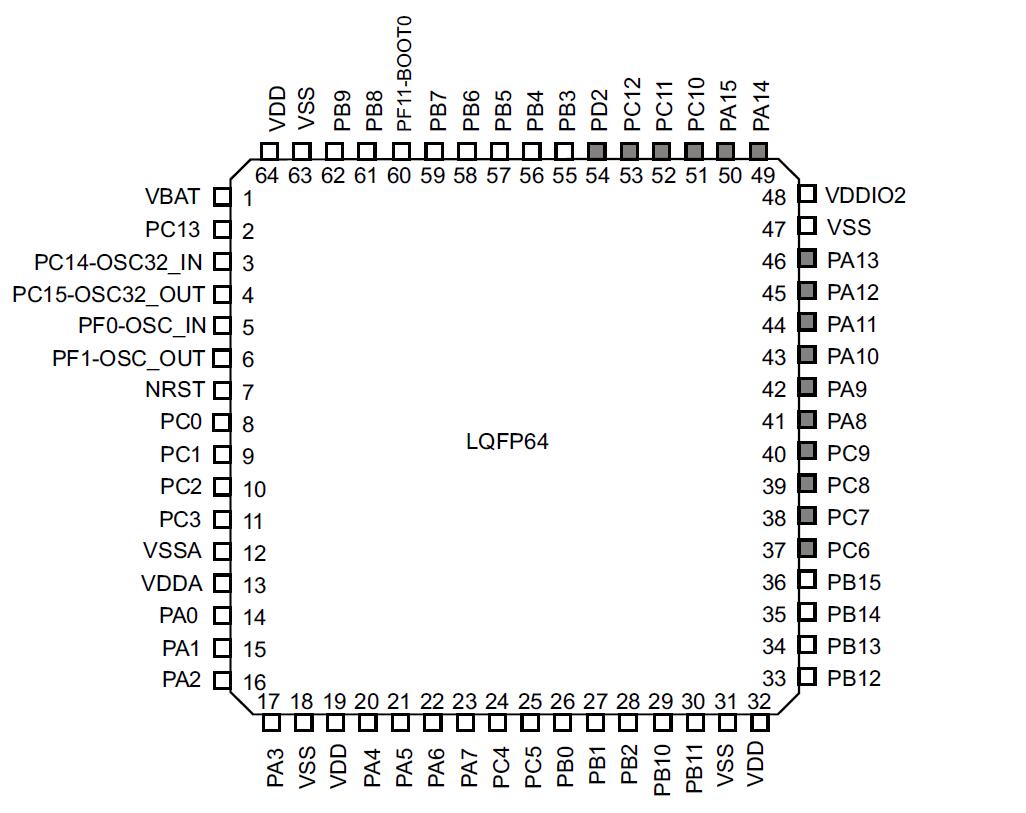

STM32F091RCT6引脚图
STM32F091RCT6封装图
