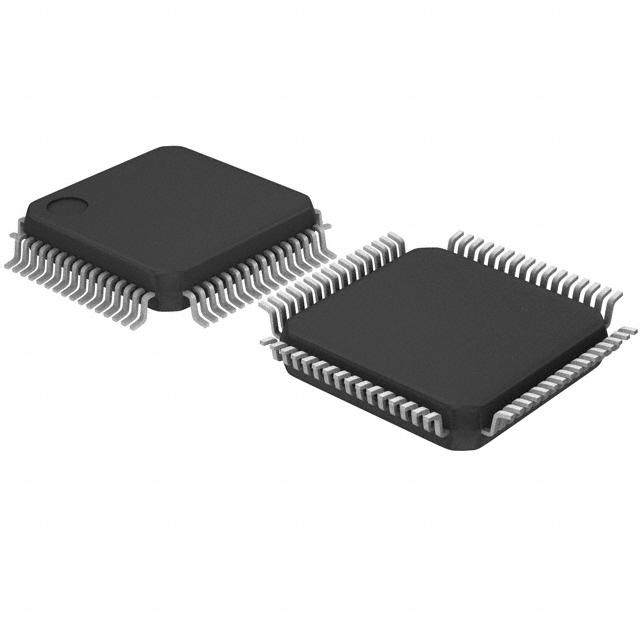

STMICROELECTRONICS STM32L152R6T6A 微控制器, 32位, 超低功率, ARM 皮质-M3, 32 MHz, 32 KB, 16 KB, 64 引脚, LQFP
The is an ultra-low-power STM32 L1 series 32-bit Microcontroller incorporates the connectivity power of the universal serial bus USB with the high-performance ARM Cortex-M3 RISC core operating at a frequency of 32MHz 33.3 DMIPS. It features a memory protection unit MPU, high-speed embedded memories Flash memory up to 32kB and RAM up to 10KB and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer one 12-bit ADC, two DACs, two ultra-low-power comparators, six general-purpose 16-bit timers and two basic timers, which can be used as time bases. The device contain standard and advanced communication interfaces - two I²Cs, two SPIs, three USARTs and an USB.
针脚数 64
时钟频率 32.0 MHz
RAM大小 16 KB
位数 32
耗散功率 444 mW
模数转换数ADC 1
输入/输出数 51 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 444 mW
数模转换数DAC 2
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
封装 LQFP-64
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 Security, 消费电子产品, Communications & Networking, Medical, 成像, 视频和目视, Consumer Electronics, 安全, 自动化与过程控制, 计算机和计算机周边, 成像, 视频和目视, 传感与仪器, Metering, 通信与网络, Portable Devices, Sensing & Instrumentation, Imaging, Video & Vision, 计量, Automation & Process Control, 便携式器材, 医用, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 PB free
REACH SVHC版本 2015/12/17
ECCN代码 3A991A2
