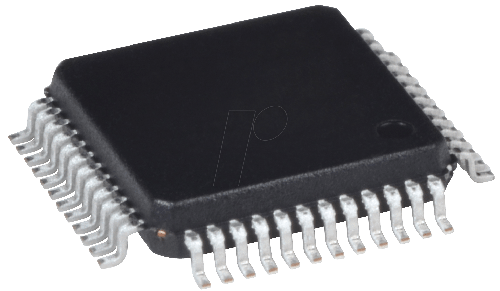

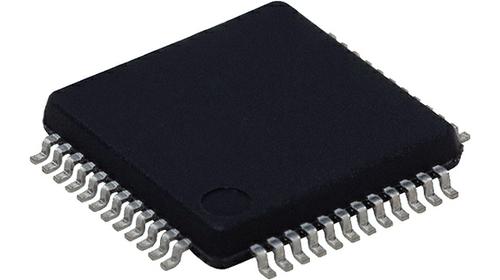

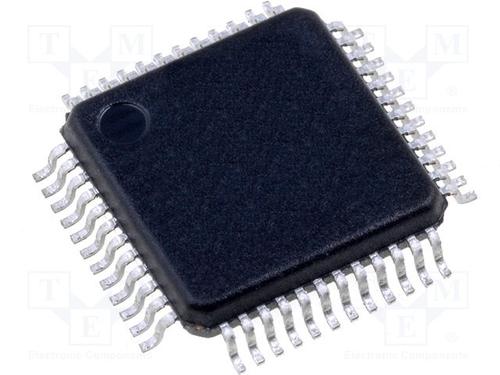

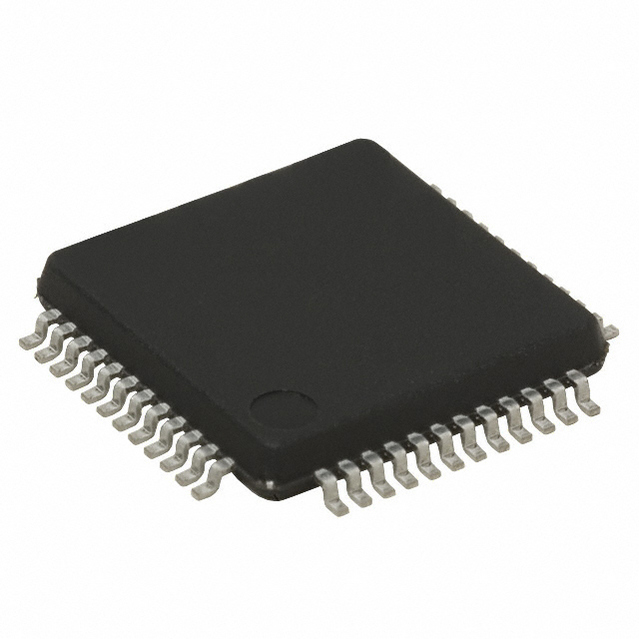

STMICROELECTRONICS STM32F101CBT6 芯片, 微控制器, 32位, ARM COTREX M3, 48LQFP
The is a medium density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 36MHz frequency, high speed embedded memories Flash memory up to 128kB and SRAM up to 16KB and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, two SPIs and three USARTs.
频率 36 MHz
电源电压DC 2.00V min
工作电压 2V ~ 3.6V
针脚数 48
时钟频率 36 MHz
RAM大小 16 KB
位数 32
耗散功率 363 mW
FLASH内存容量 128 KB
模数转换数ADC 1
输入/输出数 37 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 363 mW
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 48
封装 LQFP-48
长度 7 mm
宽度 7 mm
高度 1.4 mm
封装 LQFP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
制造应用 Automation & Process Control, 医用, 自动化与过程控制, 电源管理, Computers & Computer Peripherals, Power Management, 通信与网络, 成像, 视频和目视, Imaging, Video & Vision, 消费电子产品, Consumer Electronics, 工业, 安全, Industrial, Communications & Networking, HVAC, 成像, Security, Medical, 视频和目视, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991A2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STM32F101CBT6 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STM32F101CBT6TR 意法半导体 | 类似代替 | STM32F101CBT6和STM32F101CBT6TR的区别 |
