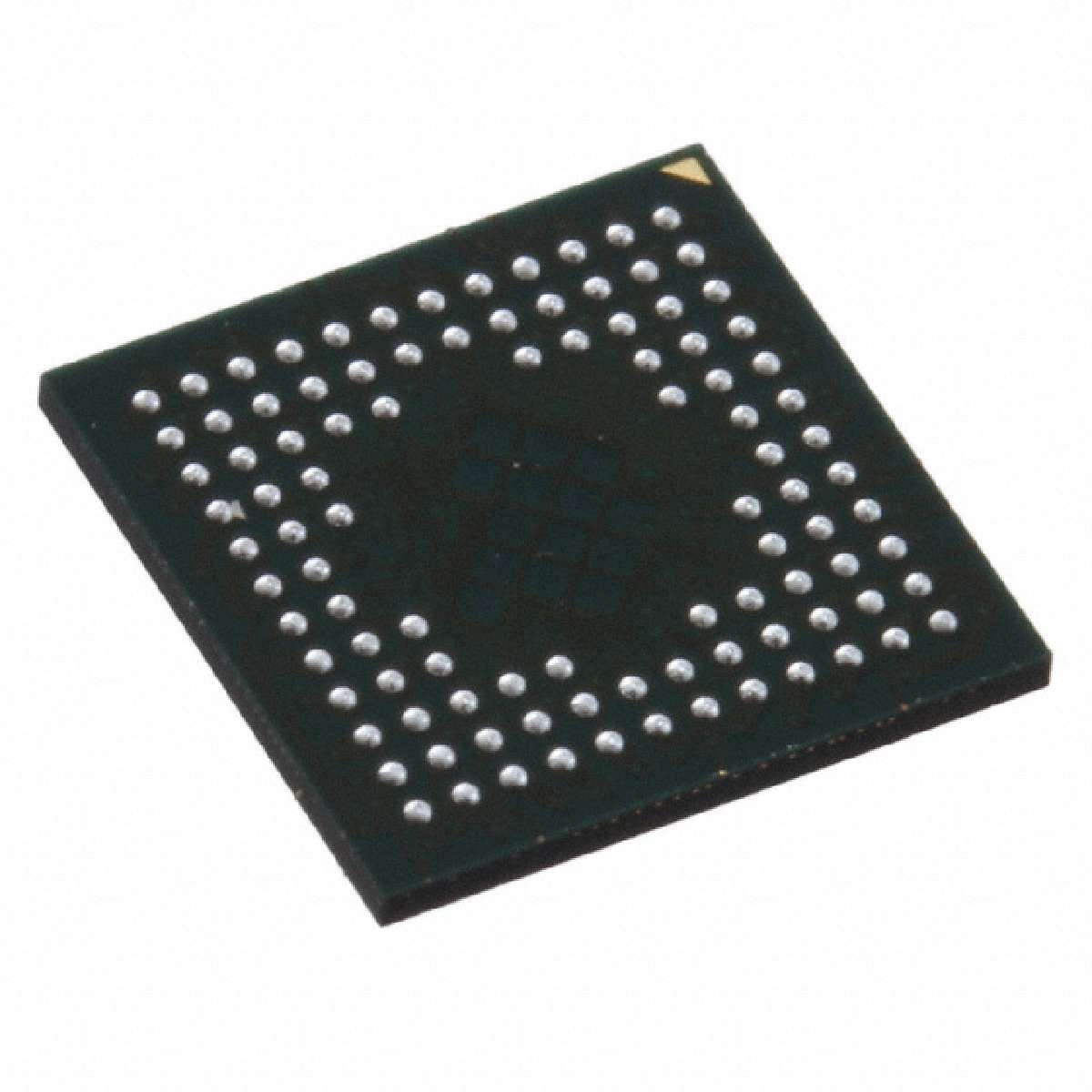

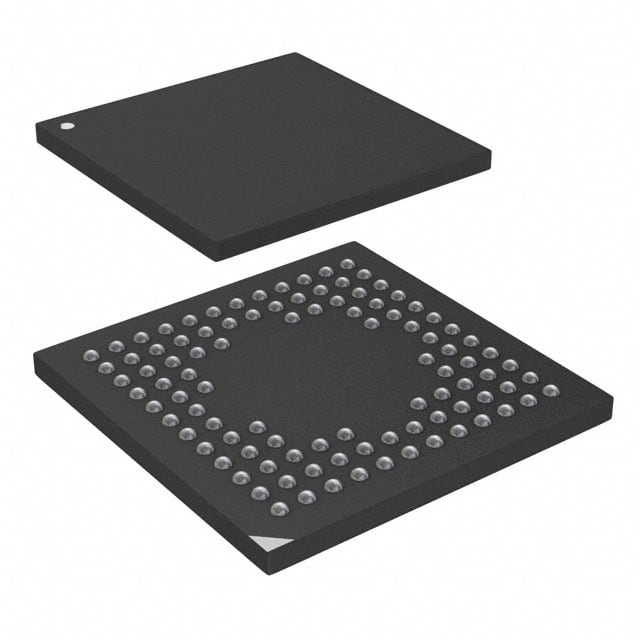

STMICROELECTRONICS STM32F372V8H6 微控制器, 32位, 浮点单元, ARM 皮质-M4F, 72 MHz, 64 KB, 16 KB, 100 引脚, BGA
ARM® Cortex®-M4 series IC 32-位 72MHz 64KB(64K x 8) 闪存 100-UFBGA(7x7)
得捷:
IC MCU 32BIT 64KB FLASH 100UFBGA
e络盟:
STMICROELECTRONICS STM32F372V8H6 微控制器, 32位, 浮点单元, ARM 皮质-M4F, 72 MHz, 64 KB, 16 KB, 100 引脚, BGA
艾睿:
Automate any process or system using this STM32F372V8H6 microcontroller from STMicroelectronics. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 72 MHz. Its ADC resolution is 12/16/16/16, while its DAC resolution is 12. This device is based on the ARM Cortex M4 core architecture. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. This is a 32 bit processor. Its flash program memory is 64KB.
安富利:
MCU 32-bit STM32F ARM Cortex M4 RISC 64KB Flash 2.5V/3.3V 100-Pin UF-BGA Tray
Chip1Stop:
MCU 32-bit STM32F ARM Cortex M4 RISC 64KB Flash 2.5V/3.3V 100-Pin UFBGA Tray
Verical:
MCU 32-bit ARM Cortex M4 RISC 64KB Flash 2.5V/3.3V 100-Pin UFBGA Tray
Newark:
# STMICROELECTRONICS STM32F372V8H6 32 Bit Microcontroller, Floating Point Unit, ARM Cortex-M4F, 72 MHz, 64 KB, 16 KB, 100 Pins, BGA
力源芯城:
带DSP和FPU的混合信号32位MCU
DeviceMart:
IC MCU 32BIT 64KB FLASH 100BGA
Win Source:
IC MCU 32BIT 64KB FLASH 100UFBGA / ARM® Cortex®-M4 series Microcontroller IC 32-Bit Single-Core 72MHz 64KB 64K x 8 FLASH 100-UFBGA 7x7
频率 72 MHz
电源电压DC 2.00V min
针脚数 100
时钟频率 72.0 MHz
RAM大小 16 KB
位数 32
模数转换数ADC 2
输入/输出数 84 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 434 mW
数模转换数DAC 1
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 100
封装 BGA-100
封装 BGA-100
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
