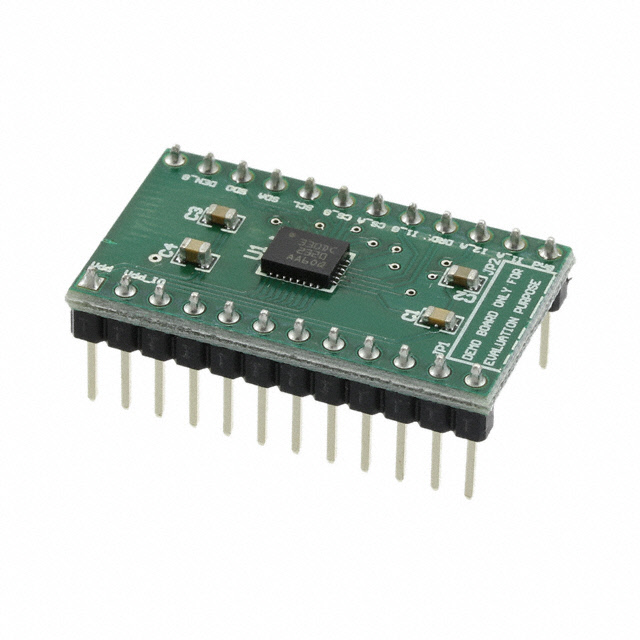

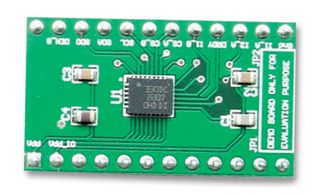

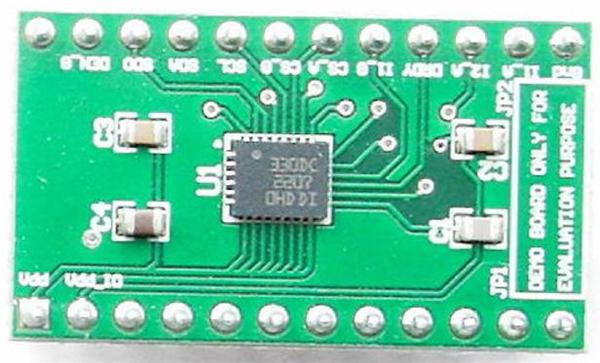

STMICROELECTRONICS STEVAL-MKI122V1 适配器电路板, DIL24插座, LSM330DLC
The is an Adapter Board designed to facilitate the evaluation of MEMS devices in the LSM330DLC product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the users own application. The board can be plugged into a standard DIL 24 socket. The adapter provides the complete LSM330DLC pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVAL-MKI109V2 motherboard which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface Unico GUI or dedicated software routines for customized applications.
- .
- Complete LSM330DLC pinout for a standard DIL 24 socket
