LPR410AL的MEMS演示板

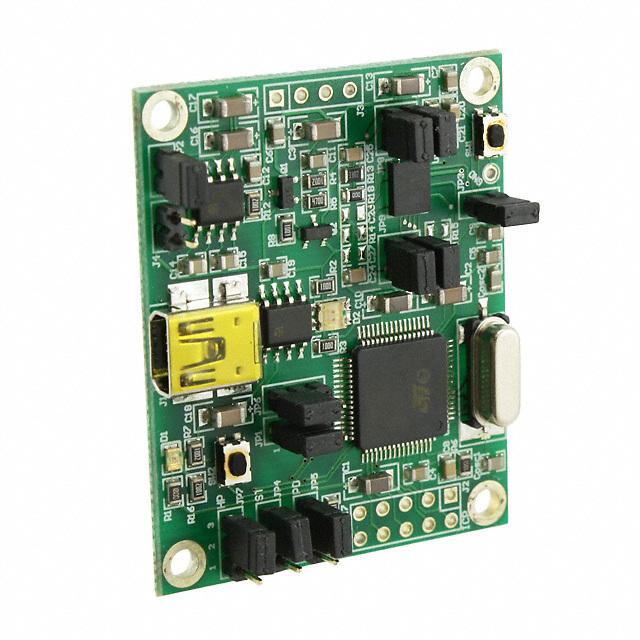

is a demo board based on LPR410AL gyroscope. It includes a sensing element and an IC interface capable of translating information from the sensing element into a measured signal that can be used for external applications. In addition to the MEMS sensor, the demonstration board uses an ST7 microcontroller which functions as a bridge between the sensor and the PC. Board has been designed for use in two different working modes analog and digital. In analog mode the microcontroller is disabled and the analog outputs of the device are available to the user on a dedicated connector. This is the default working mode when power is supplied through either the USB connector or the supply connector. In digital mode the microcontroller is enabled and allows the user to digitally acquire the output signals of the device, to view them on the PC through the dedicated GUI, and to manage the control pins of the device.
- .
- Graphical user interface
- .
- Uses LPR410AL dual axis pitch and roll ± 100dps analog gyroscope
- .
- Two different working modes analog AWMdigital DWM
