STEVAL-IFS006V2

与SPT01-335DEE智能电感式接近开关 Smart inductive proximity switch with the SPT01-335DEE

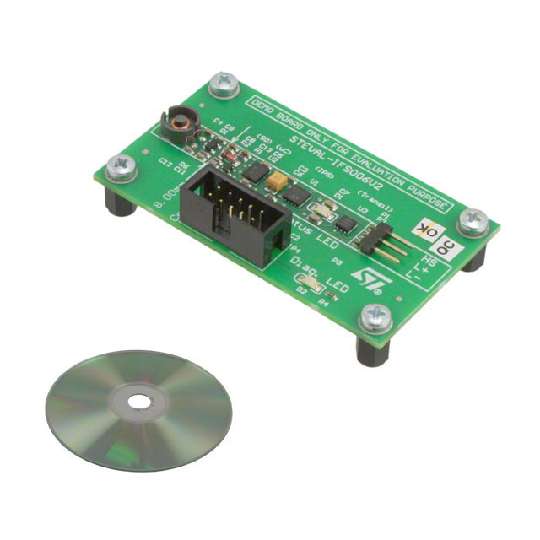

The demonstration board is an inductive proximity switch application based on the principle of metal body detection using the eddy current effect on the HF losses of a coil. The STEVAL-IFS006V2 represents a very simple, compact and cost-effective solution for an inductive proximity switch with wide temperature range, supply voltage variation and noise immunity in industrial environments. The design consists of a single transistor HF oscillator, an ST7LITEUS5 microcontroller, an intelligent TDE1708DFT power switch, and a SPT01-335DEE triple Transil™ array.

.

In-circuit programming and debugging capabilities

.

Analog and digital temperature compensation

.

PNP high-side sensor functionality configuration

.

Complete Transil protection of the output and power supply lines

.

Overload and short-circuit protection

.

Indicator status LED

.

Compact design

.

Indicator status LED

.

Compact design
