8位MCU ， 3.8〜 5.5 V的工作范围8〜 32 Kbyte闪存/ ROM ， 10位ADC ， 4个定时器， SPI ， SCI 8-bit MCU, 3.8 to 5.5 V operating range with 8 to 32 Kbyte Flash/ROM, 10-bit ADC, 4 timers, SPI, SCI
ST7 series IC 8 位 8MHz 32KB（32K x 8） 闪存
得捷:
IC MCU 8BIT 32KB FLASH 42SDIP
贸泽:
8-bit Microcontrollers - MCU 5V 8-BIT MCU WITH 8 TO 32K FLASH
艾睿:
Automate any process or system using this ST72F324BJ6B6 microcontroller from STMicroelectronics. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 8 MHz. This is a 8 bit processor. Its ADC resolution is 10. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 3.8 V, while its maximum is 5.5 V. Its flash program memory is 32KB.
安富利:
MCU 8-bit ST7 CISC 32KB Flash 5V 42-Pin SPDIP Tube
Chip1Stop:
MCU 8-bit ST7 CISC 32KB Flash 5V 42-Pin SPDIP Tube
DeviceMart:
MCU 8BIT 32KB FLASH/ROM 42-SDIP
电源电压DC 5.00 V, 5.50 V max
时钟频率 8.00 MHz, 8.00 MHz max
RAM大小 1K x 8
位数 8
耗散功率 500 mW
FLASH内存容量 32 KB
I/O引脚数 32
存取时间 8.00 µs
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min 40 ℃
耗散功率Max 500 mW
电源电压Max 5.5 V
电源电压Min 3.8 V
安装方式 Through Hole
引脚数 42

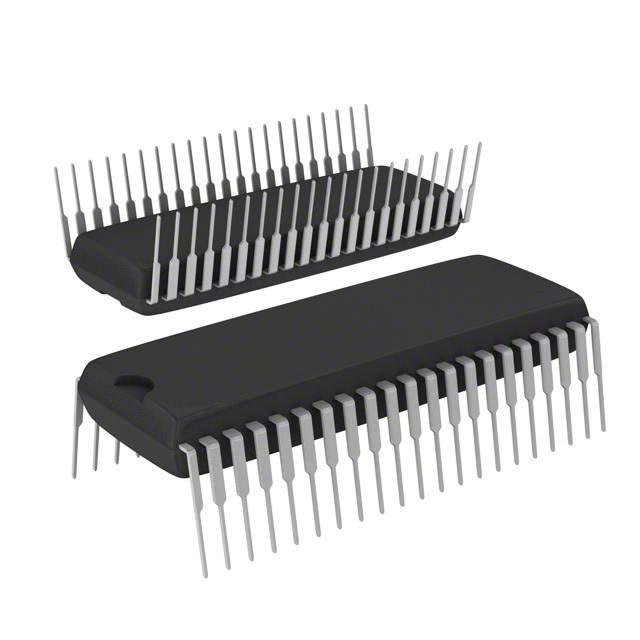

封装 SDIP-42
长度 36.83 mm
宽度 13.72 mm
高度 3.81 mm
封装 SDIP-42
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
