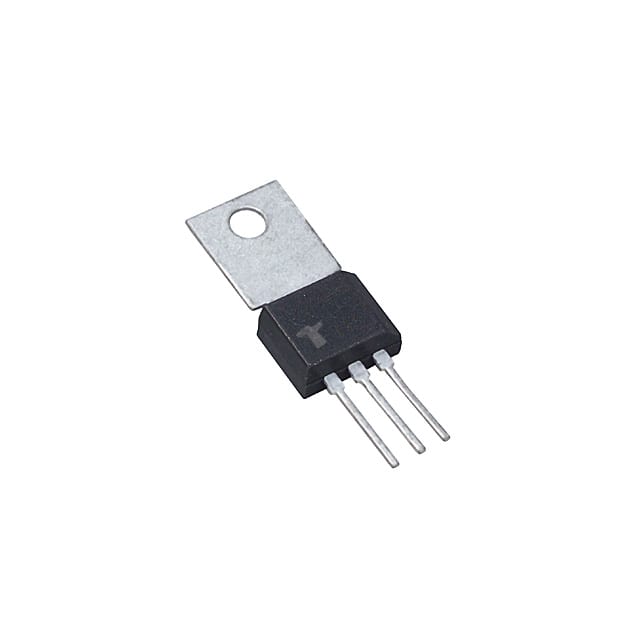

S2010F1

可控硅（ 1 A到70 A） SCRs 1 A to 70 A

General Description

The Teccor line of thyristor SCR semi-conductors are half-wave, unidirectional, gate-controlled rectifiers which complement Teccor"s line of sensitive SCRs. Teccor offers devices with ratings of 1 A to 70 A and 200 V to 1000 V, with gate sensitivities from 10 mA to 50 mA. If gate currents in the 12 µA to 500 µA ranges are required, see “Sensitive SCRs” section of this catalog.

Features

• Electrically-isolated package

• High voltage capability — 200 V to 1000 V

• High surge capability — up to 950 A

• Glass-passivated chip
