STM32F334R8T7

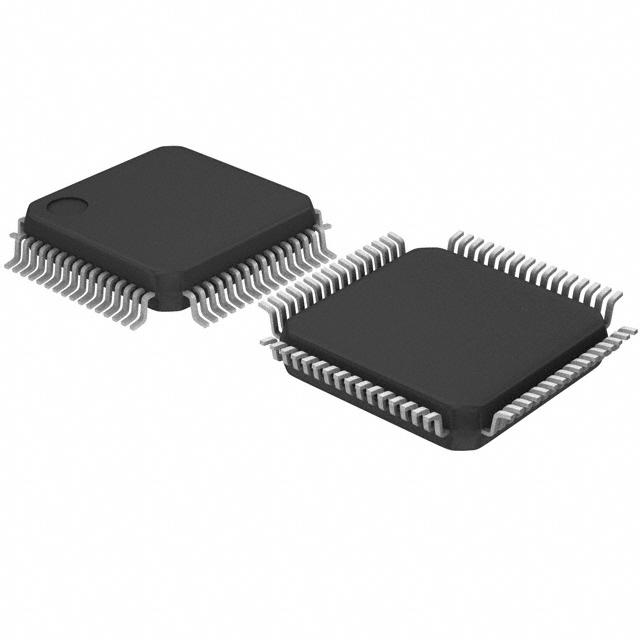

STMICROELECTRONICS  STM32F334R8T7  微控制器, 32位, 高分辨率计时器, ARM 皮质-M4, 72 MHz, 64 KB, 16 KB, 64 引脚, LQFP

The is a STM32 F3 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 72MHz and embedding a floating point unit FPU, high-speed embedded memories Flash memory up to 64kB and 16kB of SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The device offer a fast 12-bit ADCs, three comparators, an operational amplifier, three DAC channels, four general-purpose 16-bit timers, one general-purpose 32-bit timer, as well as standard and advanced communication interfaces - one I²C, one SPI, three USARTs and a CAN.

.

CRC calculation unit

.

Power-on/Power-down reset POR/PDR

.

Programmable voltage detector PVD

.

Low-power modes - Sleep, stop, standby

.

VBAT supply for RTC and backup registers

.

4 to 32MHz Crystal oscillator

.

32kHz Oscillator for RTC with calibration

.

8MHz Internal RC up to 64 MHz with PLL option

.

40kHz Internal oscillator

.

Interconnect matrix

.

7-channel DMA Controller

.

Temperature sensor

.

Up to 18 capacitive sensing channels

.

2 x Watchdog timers Independent and window

.

SysTick Timer

.

Up to two 16-bit Basic timers to drive DAC

.

Calendar RTC with alarm, periodic wakeup from stop

.

CAN Interface 2.0 B Active and one SPI

.

Serial wire debug SWD, JTAG

.

96-bit Unique ID
