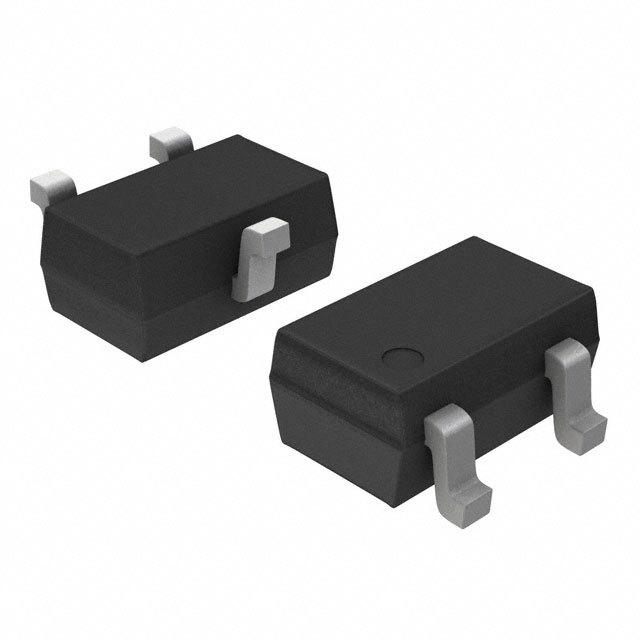

数字晶体管( BRT ) R1 = 4.7千欧, R2 = 47 K· Digital Transistors BRT R1 = 4.7 k, R2 = 47 k
Look no further than "s PNP digital transistor, which can provide a solution to your digital signal processing needs. This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 80@5mA@10 V. It has a maximum collector emitter saturation voltage of 0.25@0.3mA@10mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 310 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This transistor has an operating temperature range of -55 °C to 150 °C. It is made in a single configuration.
无卤素状态 Halogen Free
极性 PNP
耗散功率 0.31 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @5mA, 10V
额定功率Max 202 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 310 mW
安装方式 Surface Mount
引脚数 3
封装 SC-70-3
高度 0.85 mm
封装 SC-70-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
