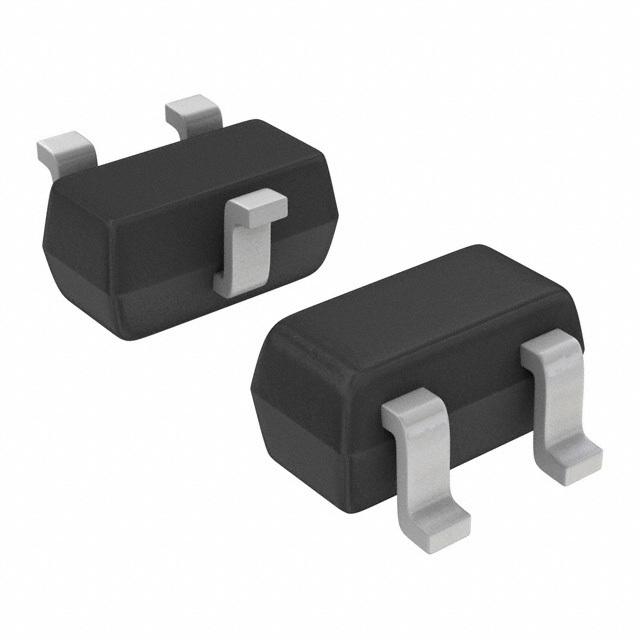

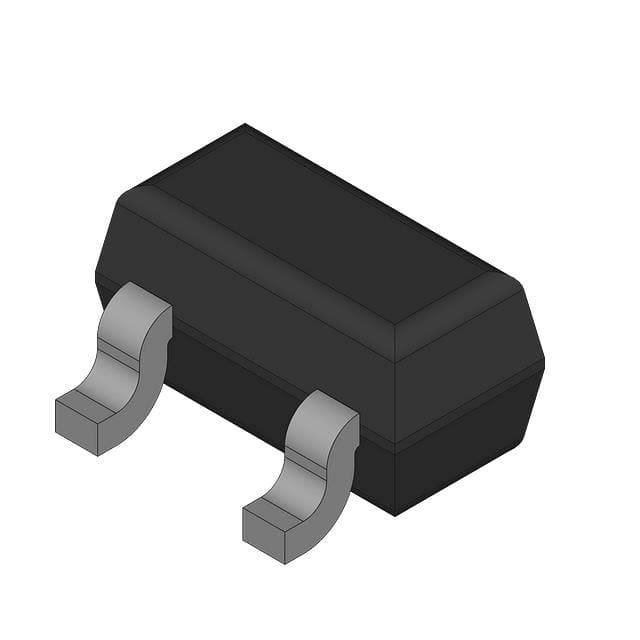

SDTC144EET1G

SOT-416 NPN 50V 100mA

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor BRT contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.

Features

---

 |

.

Simplifies Circuit Design

.

Reduces Board Space

.

Reduces Component Count

.

S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

.

These Devices are PbFree, Halogen Free/BFR Free and are RoHS Compliant
