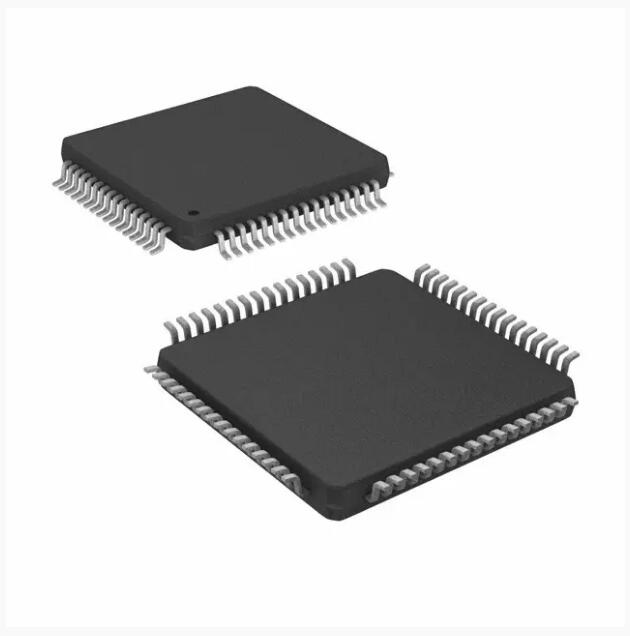

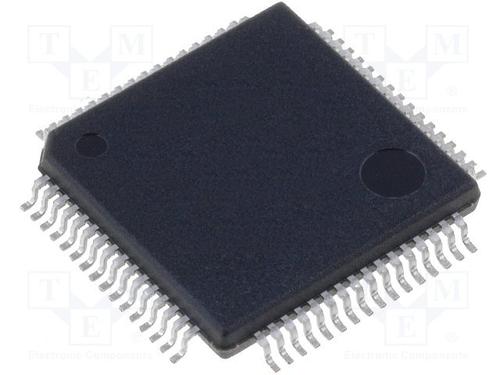

STMICROELECTRONICS STM32F411RCT6 微控制器, 32位, 批量采集模式, ARM 皮质-M4, 100 MHz, 256 KB, 128 KB, 64 引脚, LQFP
The is a Microcontroller Unit, based on the high-performance ARM® Cortex® -M4 32-bit RISC core operating at a frequency of up to 100MHz. Its Cortex®-M4 core features a floating point unit FPU single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit MPU which enhances application security. It incorporate high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB bus and a 32-bit multi-AHB bus matrix.
频率 100 MHz
针脚数 64
时钟频率 100 MHz
RAM大小 128 KB
位数 32
输入/输出数 50 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
长度 10 mm
宽度 10 mm
封装 LQFP-64
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 传感与仪器, 医用, 消费电子产品, Consumer Electronics, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
