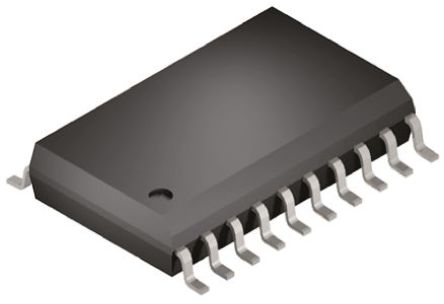

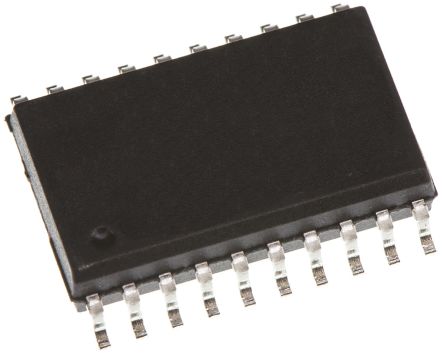

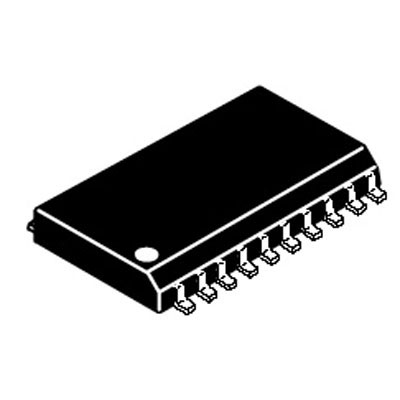

TEXAS INSTRUMENTS SN74LV245ADW 收发器, 非反相, 3态, 2V至5.5V, SOIC-20
The is an octal Bus Transceiver with 3-state outputs and is designed for 2 to 5.5V VCC operation. It is also e designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control input. The output-enable input can be used to disable the device so the buses are effectively isolated. To ensure the high-impedance state during power up or power down, output enable should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 2.00V ~ 5.50V
电路数 8
通道数 8
针脚数 20
位数 8
电压波节 5.00 V, 3.30 V, 2.50 V
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 13 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 电机驱动与控制, 通信与网络, 工业, 成像, 视频和目视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LV245ADW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV245ADBLE 德州仪器 | 完全替代 | SN74LV245ADW和SN74LV245ADBLE的区别 |
SN74LV245ADBR 德州仪器 | 类似代替 | SN74LV245ADW和SN74LV245ADBR的区别 |
SN74LV245ADWE4 德州仪器 | 类似代替 | SN74LV245ADW和SN74LV245ADWE4的区别 |
