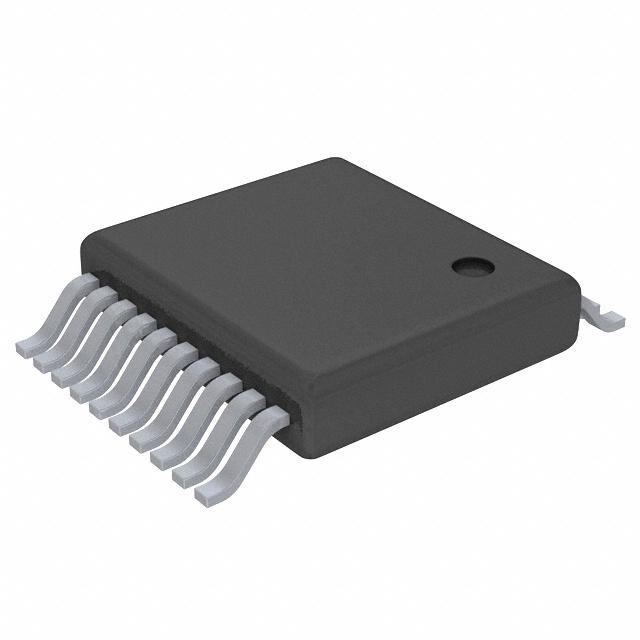

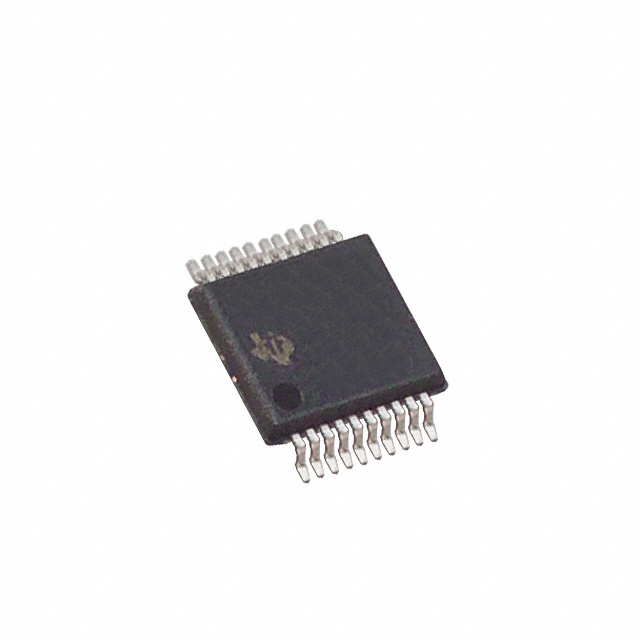

SN74LV245ADGVRG4

八路总线收发器与3态输出 OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS

These octal bus transceivers are designed for 2-V to 5.5-V VCC operation.

2-V to 5.5-V VCC Operation

Max tpd of 6.5 ns at 5 V

Typical VOLPOutput Ground Bounce <0.8 V at VCC = 3.3 V, TA= 25°C

Typical VOHVOutput VOHUndershoot >2.3 V at VCC = 3.3 V, TA= 25°C

Support Mixed-Mode Voltage Operation on All Ports

Ioff Supports Partial-Power-Down Mode Operation

Latch-Up Performance Exceeds 250 mA Per JESD 17

ESD Protection Exceeds JESD 22

  − 2000-V Human-Body Model A114-A

  − 200-V Machine Model A115-A

  − 1000-V Charged-Device Model C101
