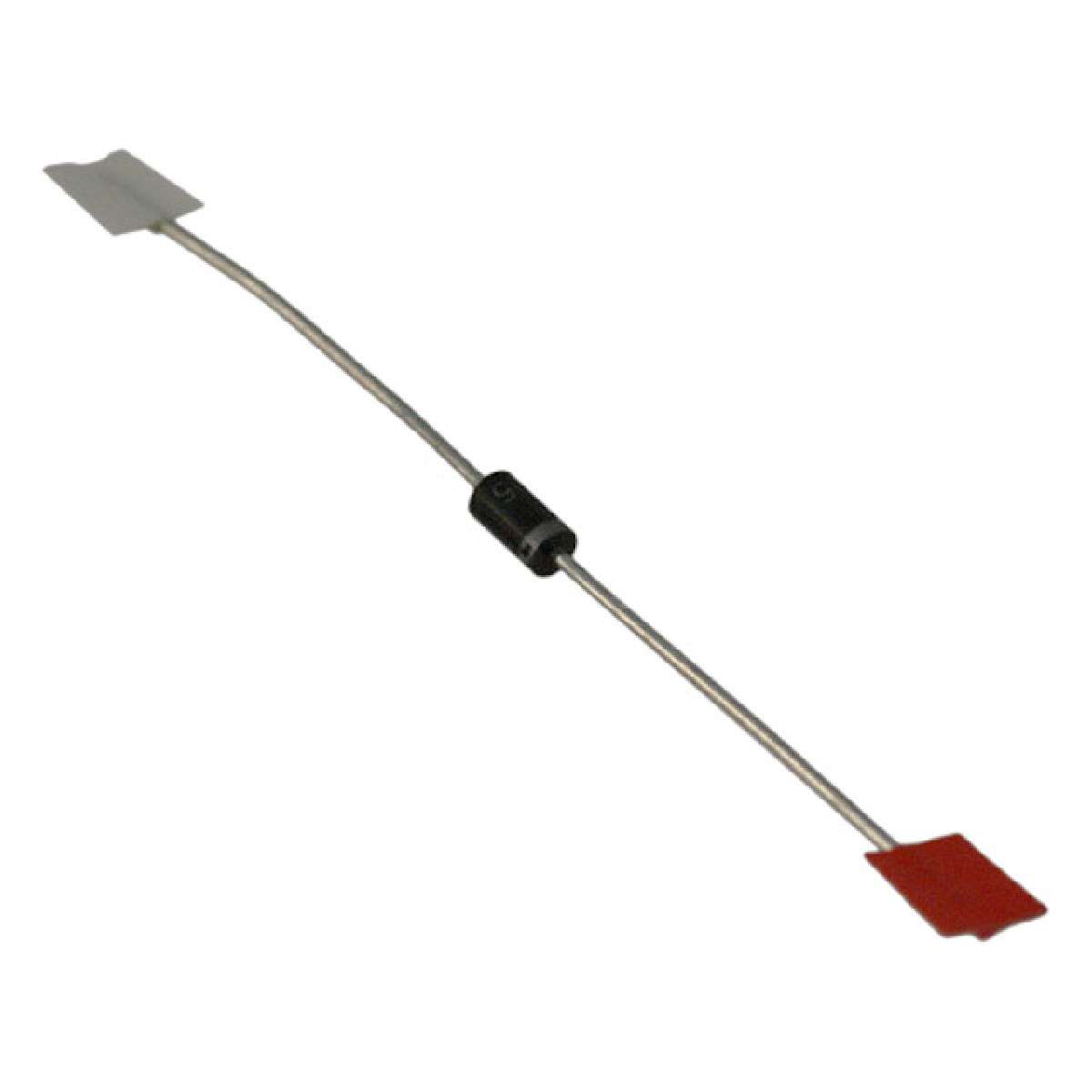

Diode Schottky 60V 2A 2Pin DO-41 T/R
肖特基 2A 通孔 DO-41
得捷:
DIODE SCHOTTKY 60V 2A DO41
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode SR206-TP rectifier from Micro Commercial Components. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 2 A. This rectifier has a minimum operating temperature of -50 °C and a maximum of 125 °C.
Chip1Stop:
Diode Schottky 60V 2A 2-Pin DO-41 T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SR206-TP Schottky Rectifier, 60 V, 2 A, Single, DO-41, 2 Pins, 700 mV
额定电压DC 60.0 V
额定电流 2.00 A
电容 50.0 pF
输出电流 ≤2.00 A
正向电压 700mV @2A
极性 Standard
热阻 30℃/W RθJL
正向电流 2 A
最大正向浪涌电流（Ifsm） 50 A
正向电压Max 700 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -50 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
宽度 2.7 mm
封装 DO-41
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SR206-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SR206 Mospec | 功能相似 | SR206-TP和SR206的区别 |
SR260 Galaxy Semi-Conductor | 功能相似 | SR206-TP和SR260的区别 |
