TEXAS INSTRUMENTS SN74ABT245BDWR 收发器, 非反相, 4.5 V至5.5 V, SOIC-20

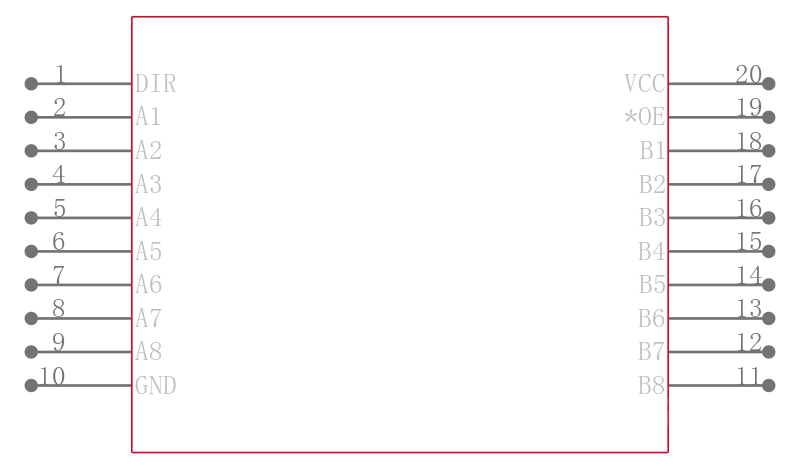

description/ordering information
These octal bus transceivers are designed for asynchronous communication between data buses. The devices transmit data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable OE input can be used to disable the device so the buses are effectively isolated.
• Typical VOLP Output Ground Bounce
<1 V at VCC = 5 V, TA = 25°C
• Ioff and Power-Up 3-State Support Hot Insertion
• High-Drive Outputs −32-mA IOH, 64-mA IOL
• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD 17
• ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model A114-A
− 200-V Machine Model A115-A
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 8
通道数 8
针脚数 20
位数 8
传送延迟时间 3.90 ns
电压波节 5.00 V
静态电流 22 mA
输出电流驱动 -500 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT245BDWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT245BDW 德州仪器 | 完全替代 | SN74ABT245BDWR和SN74ABT245BDW的区别 |
SN74ABTH245DWR 德州仪器 | 完全替代 | SN74ABT245BDWR和SN74ABTH245DWR的区别 |
SN74ABTH245DW 德州仪器 | 完全替代 | SN74ABT245BDWR和SN74ABTH245DW的区别 |
