八路总线收发器与3态输出 OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS
These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.
The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction-control DIR input. The output-enable OE\ input can be used to disable the device so that the buses are effectively isolated.
The -1 version of the SN74ALS245A is identical to the standard version, except that the recommended maximum IOL is increased to 48 mA. There is no -1 version of the SN54ALS245A.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 8
通道数 8
位数 8
传送延迟时间 10.0 ns
电压波节 5.00 V
输出电流驱动 -625 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

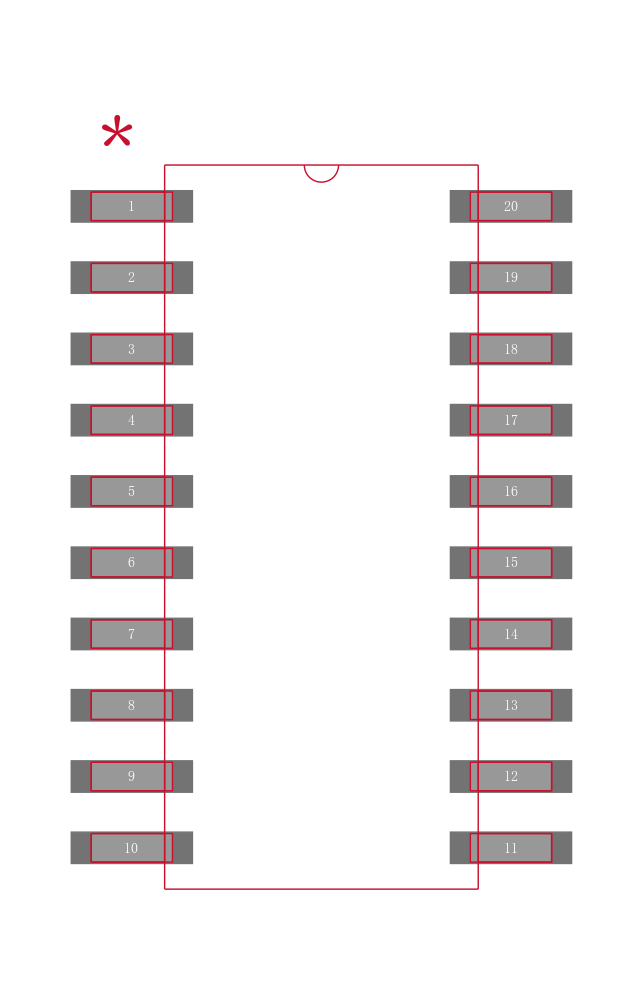

封装 SOP-20
宽度 5.3 mm
封装 SOP-20
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALS245A-1NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALS245ANSR 德州仪器 | 完全替代 | SN74ALS245A-1NSR和SN74ALS245ANSR的区别 |
SN74ALS245ANSRG4 德州仪器 | 完全替代 | SN74ALS245A-1NSR和SN74ALS245ANSRG4的区别 |
SN74ALS245ANSRE4 德州仪器 | 完全替代 | SN74ALS245A-1NSR和SN74ALS245ANSRE4的区别 |
