具有三态输出的八路寄存收发器 24-SSOP 0 to 70
The SN74F543 octal transceiver contains two sets of D-type latches for temporary storage of data flowing in either direction. Separate latch-enable or and output enable or inputs are provided for each register to permit independent control in either direction of data flow. The A outputs are characterized to sink 24 mA while the B outputs are characterized to sink 64 mA.
The A-to-B enable input must be low in order to enter data from A or to output data from B. Having low and low makes the A-to-B latches transparent; a subsequent low-to-high transition of puts the A latches in the storage mode. With and both low, the 3-state B outputs are active and reflect the data present at the output of the A latches. Data flow from B to A is similar, but requires using the , , and inputs.
The SN74F543 is available in "s shrink small-outline package DB, which provides the same I/O pin count and functionality of standard small-outline packages in less than half the printed-circuit-board area.
The SN74F543 is characterized for operation from 0°C to 70°C.
A-to-B data flow is shown; B-to-A flow control is the same except that it uses , , and .
Output level before the indicated steady-state input conditions were established.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 8
通道数 8
位数 8
传送延迟时间 8.50 ns
电压波节 5.00 V
静态电流 83.0 mA
输出电流驱动 -234 µA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 24

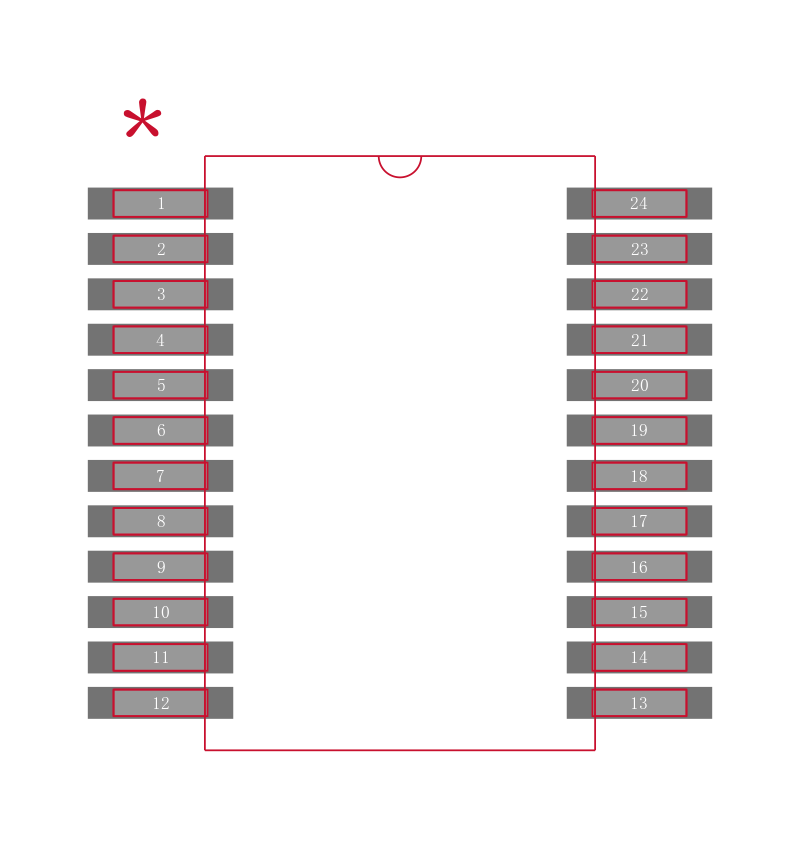

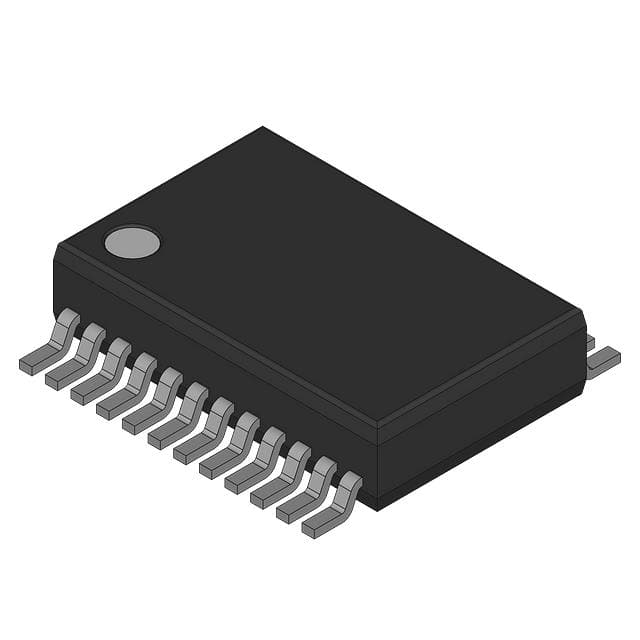

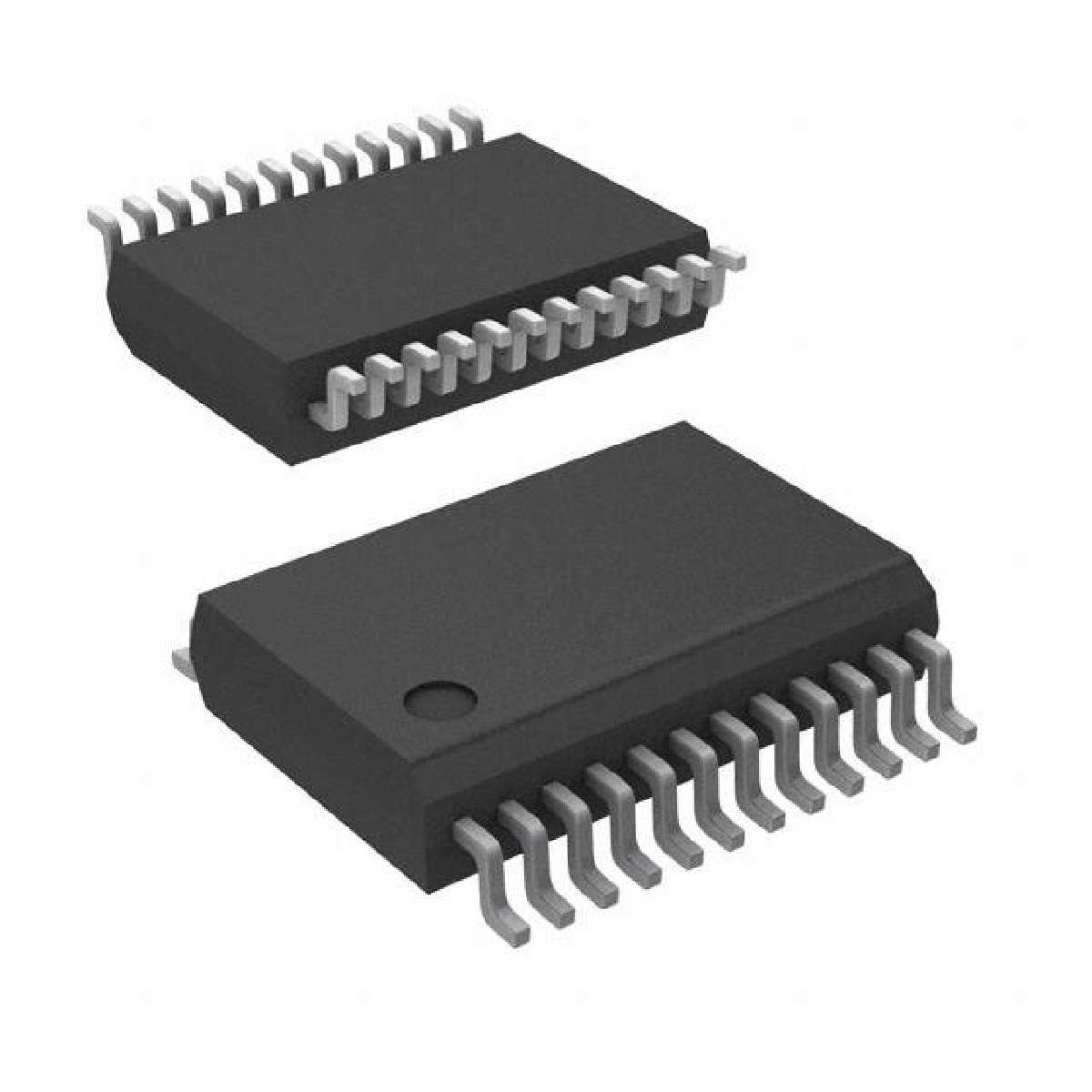

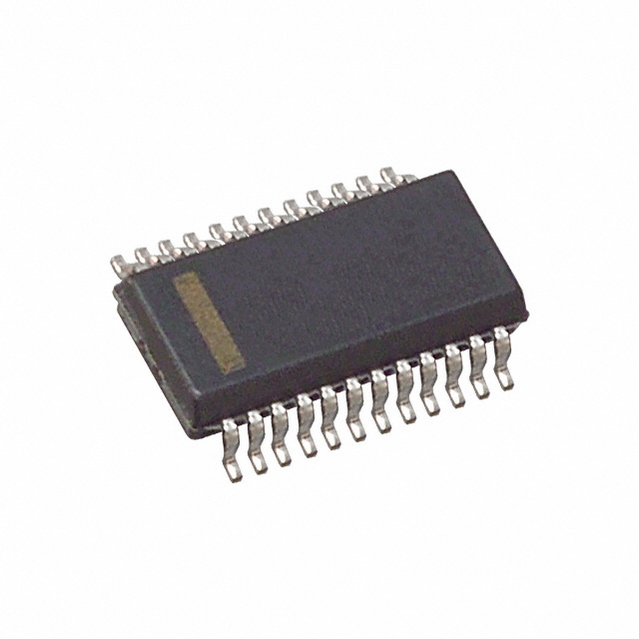

封装 SSOP-24
长度 8.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-24
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74F543DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74F543DW 德州仪器 | 完全替代 | SN74F543DBR和SN74F543DW的区别 |
SN74F543DWR 德州仪器 | 完全替代 | SN74F543DBR和SN74F543DWR的区别 |
SN74F543DWRG4 德州仪器 | 完全替代 | SN74F543DBR和SN74F543DWRG4的区别 |
