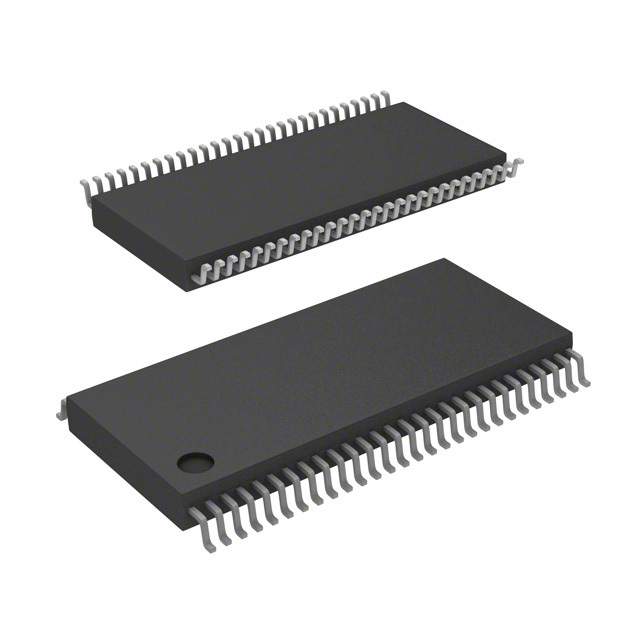

SN74LVCH16543ADGGR图片4
SN74LVCH16543ADGGR图片5
SN74LVCH16543ADGGR图片6
SN74LVCH16543ADGGR图片7
SN74LVCH16543ADGGR图片8
SN74LVCH16543ADGGR图片9

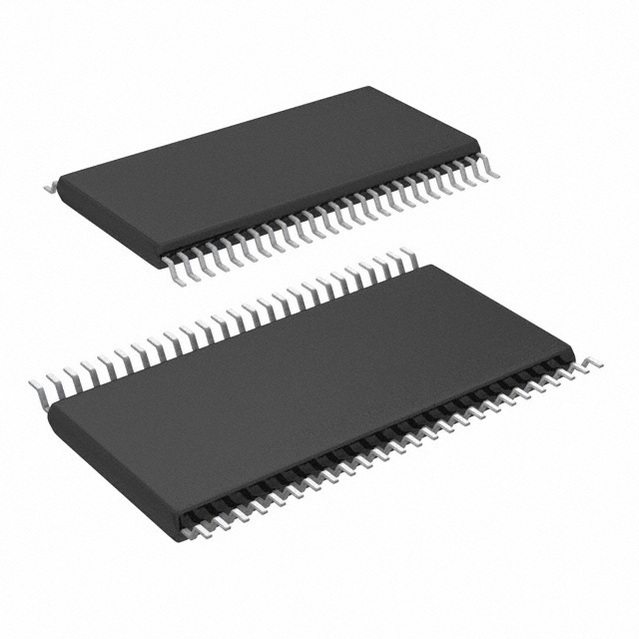

SN74LVCH16543ADGGR图片10
SN74LVCH16543ADGGR图片11
SN74LVCH16543ADGGR图片12
SN74LVCH16543ADGGR图片13
SN74LVCH16543ADGGR图片14

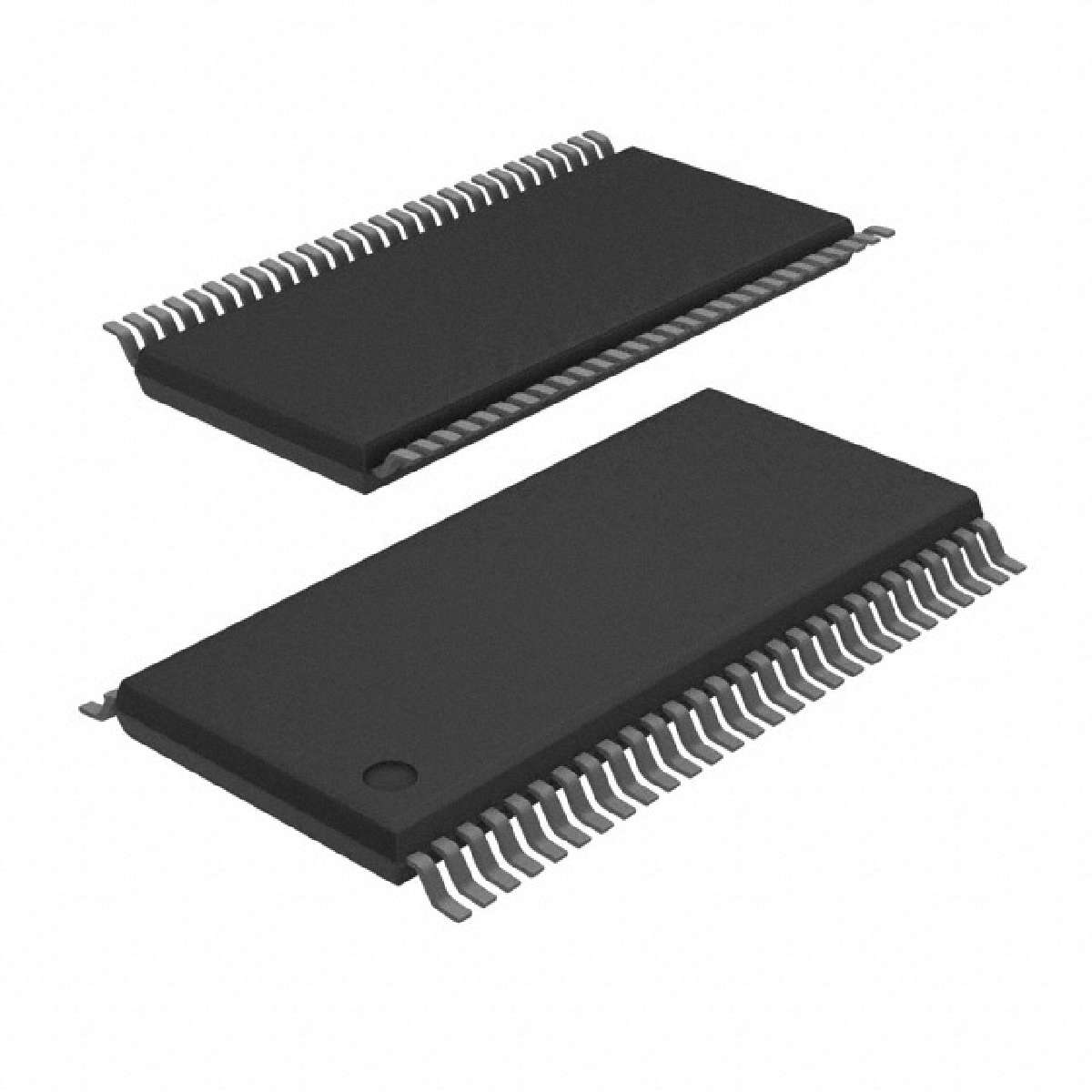

SN74LVCH16543ADGGR图片15
SN74LVCH16543ADGGR图片16

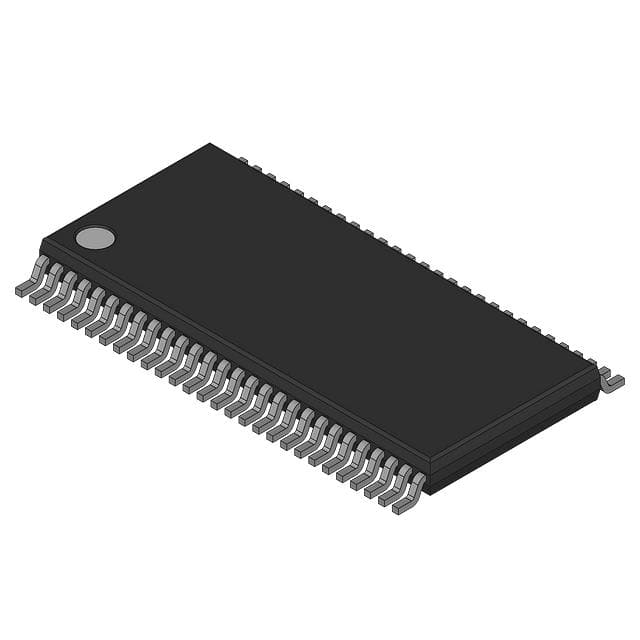

SN74LVCH16543ADGGR图片17
SN74LVCH16543ADGGR概述

16位寄存收发器与3态输出 16-BIT REGISTERED TRANSCEIVER WITH 3-STATE OUTPUTS

This 16-bit registered transceiver is designed for 1.65-V to 3.6-V VCC operation.

The SN74LVCH16543A can be used as two 8-bit transceivers or one 16-bit transceiver. Separate latch-enable LEAB\ or LEBA\\\\ and output-enable OEAB\ or OEBA\\\\ inputs are provided for each register, to permit independent control in either direction of data flow.

The A-to-B enable CEAB\\\\ input must be low to enter data from A or to output data from B. If CEAB\ is low and LEAB is low, the A-to-B latches are transparent; a subsequent low-to-high transition of LEAB\ puts the A latches in the storage mode. With CEAB\ and OEAB\ both low, the 3-state B outputs are active and reflect the data present at the output of the A latches. Data flow from B to A is similar, but requires using the CEBA\, LEBA\, and OEBA\ inputs.

To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. The bus-hold circuitry is part of the input circuit and is not disabled by OE\ or DIR.

SN74LVCH16543ADGGR中文资料参数规格
技术参数

电源电压DC 2.00V ~ 3.60V

输出接口数 16

电路数 2

通道数 16

位数 16

电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V

输出电流驱动 -1.00 mA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.65V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 56

封装 TSSOP-56

外形尺寸

长度 14 mm

宽度 6.1 mm

高度 1.15 mm

封装 TSSOP-56

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74LVCH16543ADGGR引脚图与封装图
