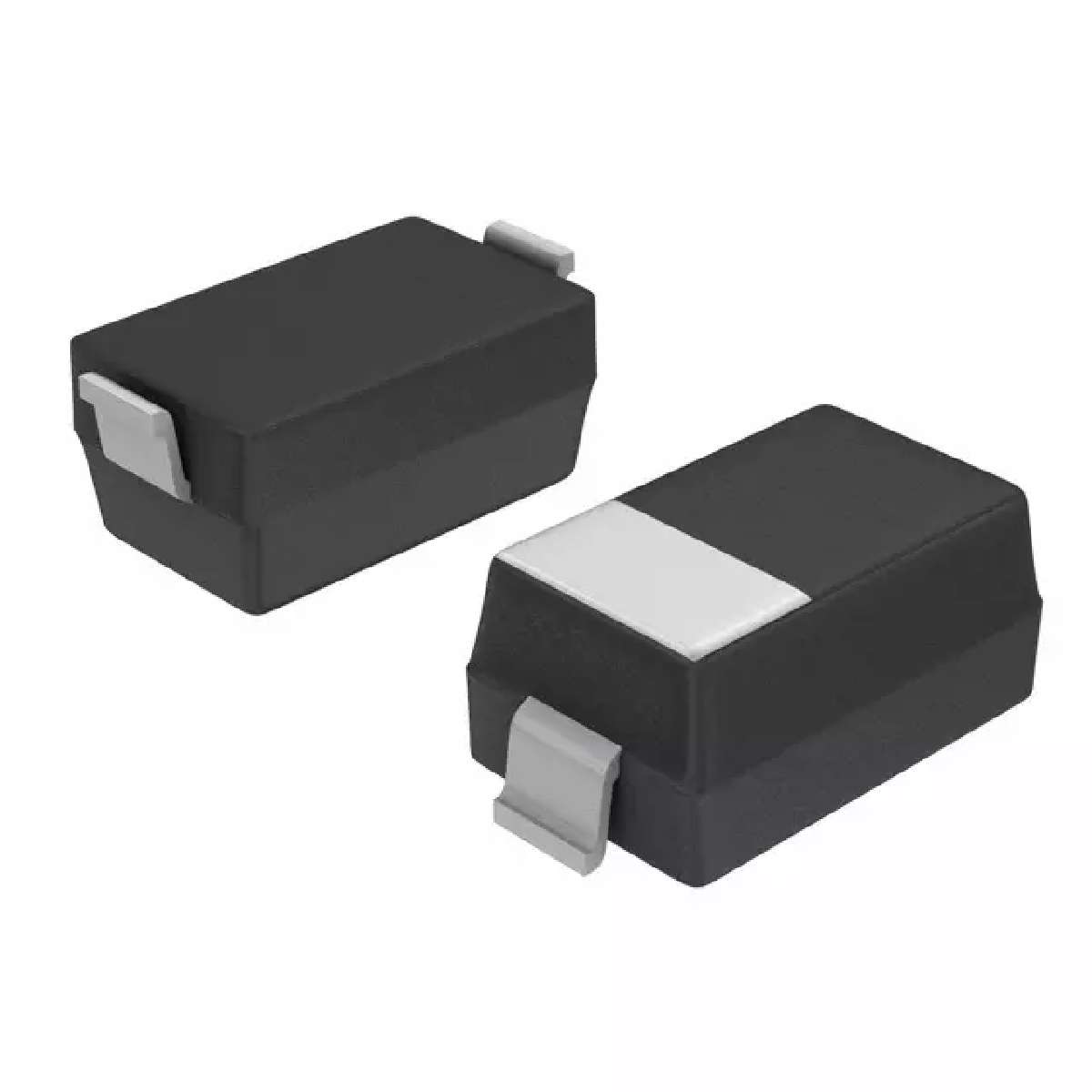

MMSZ4688T1 系列 500 mW 4.7 V 汽车 齐纳 稳压器 - SOD-123
Use a voltage regulator zener diode from that will work for backward currents. Its test current is 0.05 mA. Its maximum leakage current is 10 μA. Its maximum power dissipation is 500 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This zener device has a nominal voltage of 4.7 V. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 150 °C.
容差 ±5 %
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 0.05 mA
稳压值 4.7 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
宽度 1.6 mm
封装 SOD-123-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SZMMSZ4688T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ4688T1G 安森美 | 完全替代 | SZMMSZ4688T1G和MMSZ4688T1G的区别 |
MMSZ4688ET1G 安森美 | 完全替代 | SZMMSZ4688T1G和MMSZ4688ET1G的区别 |
MMSZ5230BT1G 安森美 | 类似代替 | SZMMSZ4688T1G和MMSZ5230BT1G的区别 |
