具有三态输出的16位总线收发器 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
Description
This 16-bit dual-octal noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation.
The SN74ALVCH16245 device is designed for asynchronous communication between two data buses. The logic levels of the direction-control DIR input and the output-enable OE input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic high or low level applied to prevent excess ICC and ICCZ.
Features
• Member of the Texas Instruments Widebus™ Family
• Operates From 1.65 V to 3.6 V
• Max tpd of 3 ns at 3.3 V
• ±24-mA Output Drive at 3.3 V
• Bus Hold on Data Inputs Eliminates the Need for External Pullup or Pulldown Resistors
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model A114-A
– 200-V Machine Model A115-A
Applications
• Cable Modem Termination Systems
• Servers
• LED Displays
• Network Switches
• Telecom Infrastructure
• Motor Drivers
• I/O Expanders
电源电压DC 1.65V ~ 3.60V
通道数 16
位数 16
传送延迟时间 3.00 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount

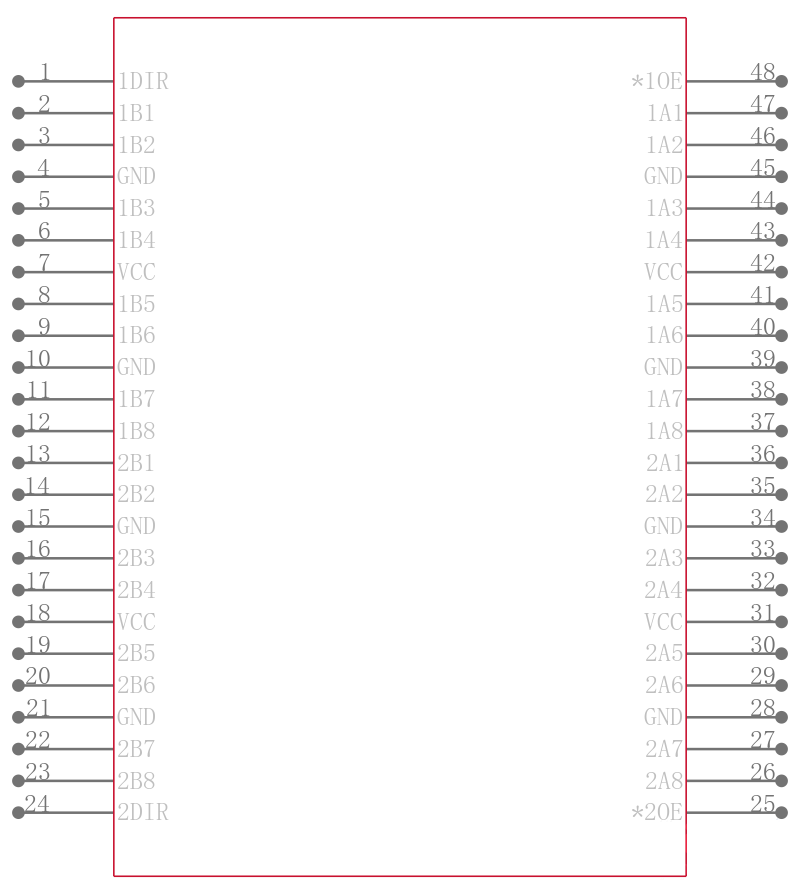

引脚数 48

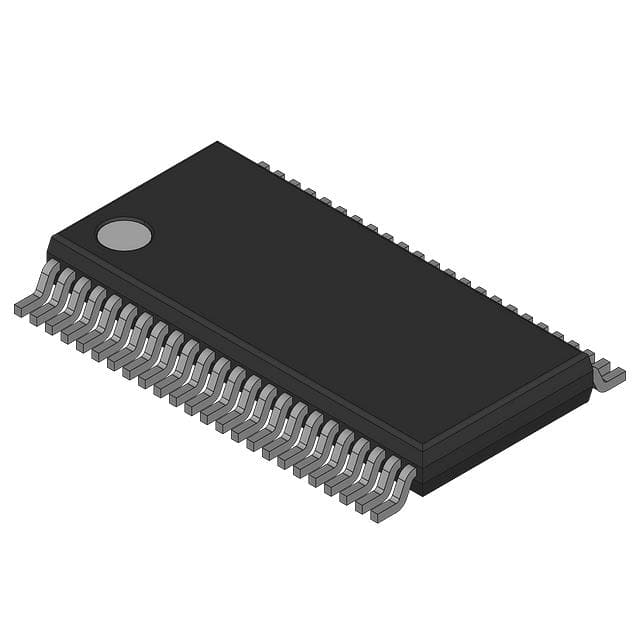

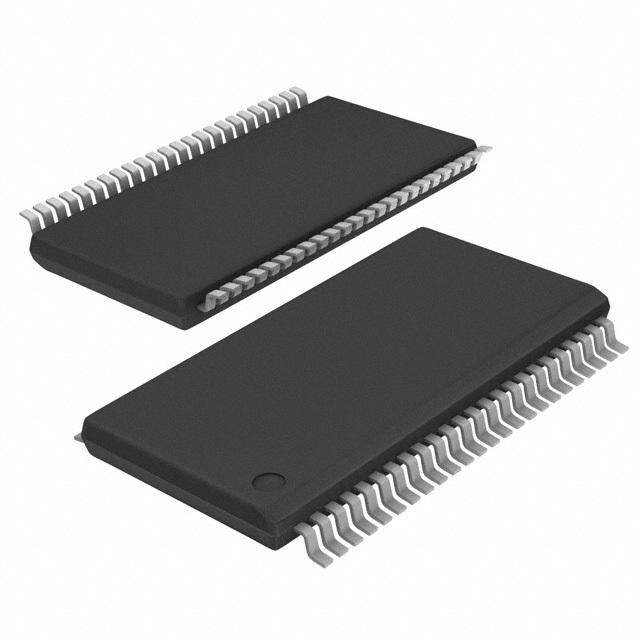

封装 TVSOP-48
封装 TVSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVCH16245DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVCH16245DGGR 德州仪器 | 完全替代 | SN74ALVCH16245DGVR和SN74ALVCH16245DGGR的区别 |
SN74ALVCH16245DL 德州仪器 | 完全替代 | SN74ALVCH16245DGVR和SN74ALVCH16245DL的区别 |
SN74ALVCH16245DLR 德州仪器 | 完全替代 | SN74ALVCH16245DGVR和SN74ALVCH16245DLR的区别 |
