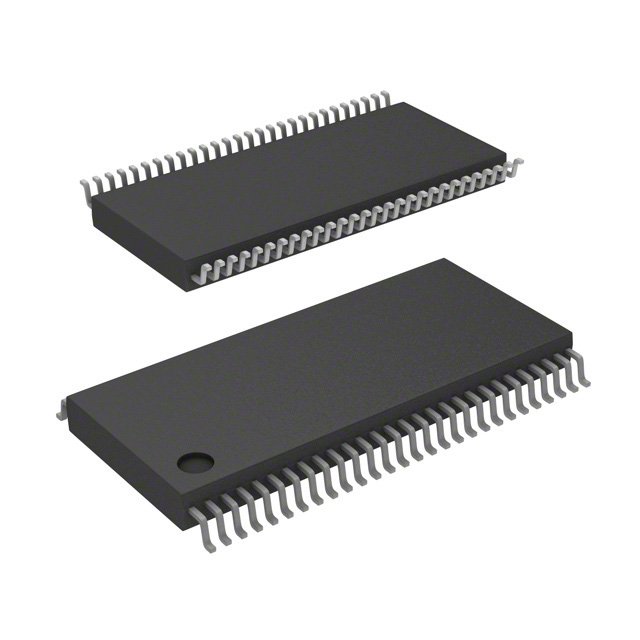

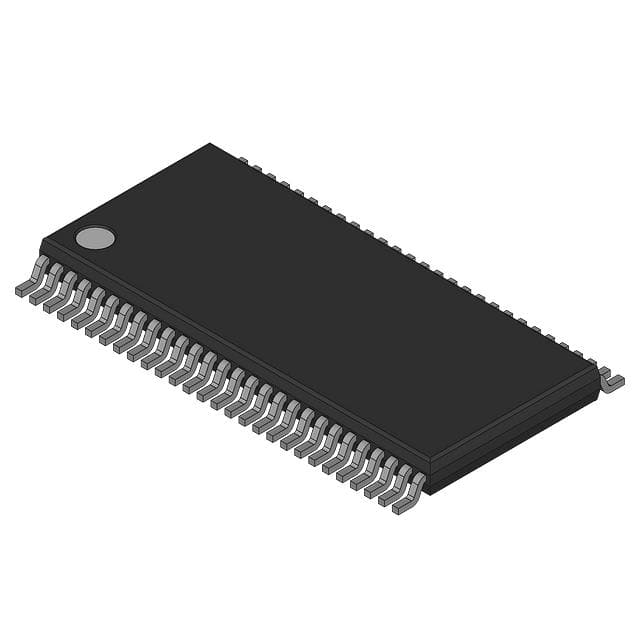

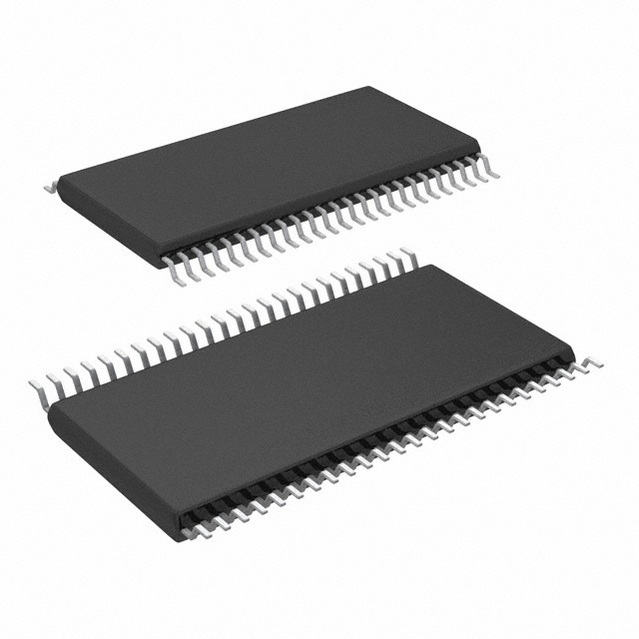

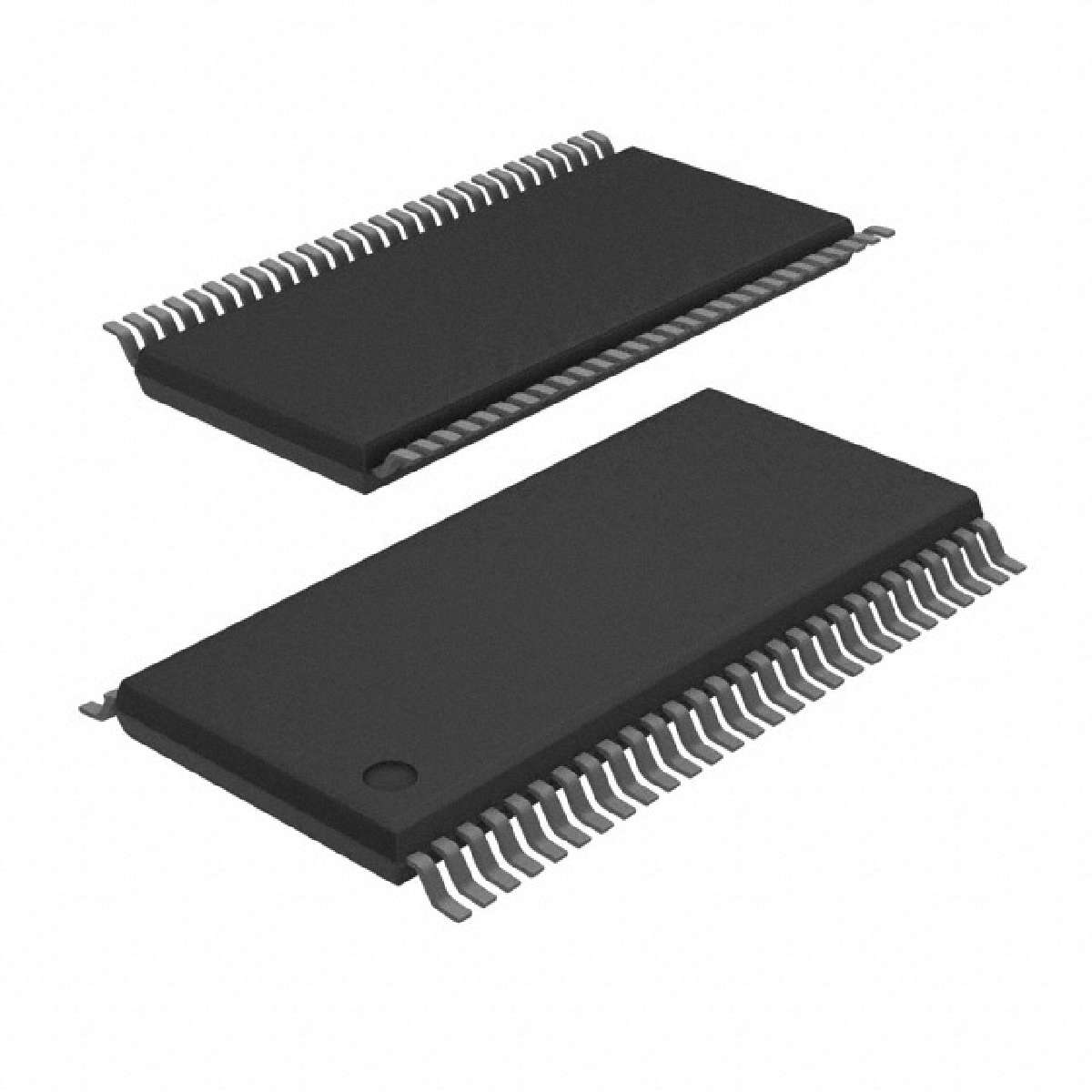

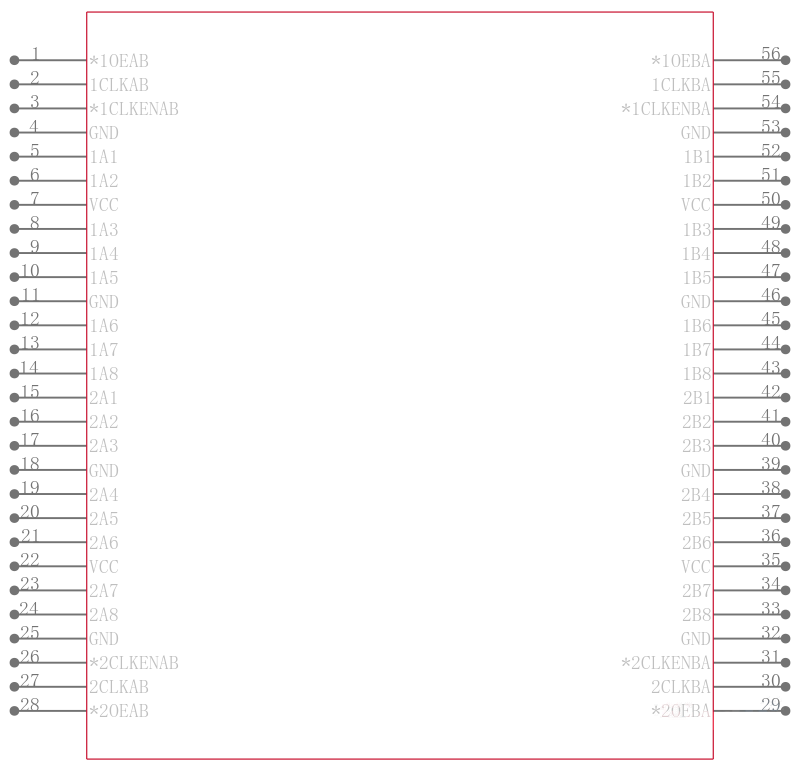

SN74ALVCH16952DGGR

具有三态输出的 16 位寄存收发器 56-TSSOP -40 to 85

This 16-bit registered transceiver is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVCH16952 contains two sets of D-type flip-flops for temporary storage of data flowing in either direction. This device can be used as two 8-bit transceivers or one 16-bit transceiver. Data on the A or B bus is stored in the registers on the low-to-high transition of the clock CLKAB or CLKBA input provided that the clock-enable CLKENAB\ or CLKENBA\\\\ input is low. Taking the output-enable OEAB\ or OEBA\\\\ input low accesses the data on either port.

To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN74ALVCH16952 is characterized for operation from -40°C to 85°C.
