SN74ABT162245DL

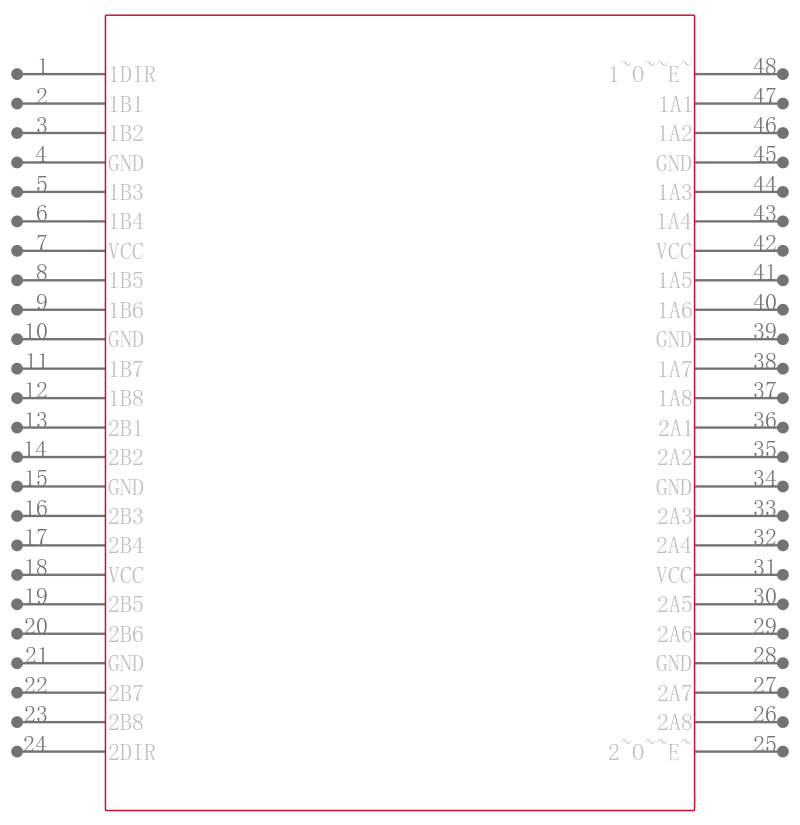

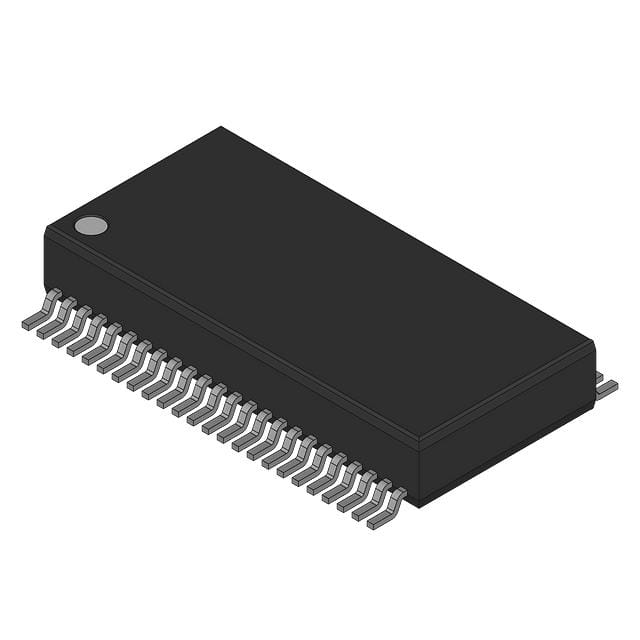

TEXAS INSTRUMENTS  SN74ABT162245DL  收发器, 非反相, 3态, 4.5V至5.5V, SSOP-48

The is a 16-bit non-inverting 3-state Bus Transceiver designed for synchronous 2-way communication between data buses. The control-function implementation minimizes external timing requirements. This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable OE\ input can be used to disable the device so that the buses effectively are isolated. This device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging current backflow through the devices when it is powered down. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor, the minimum value of the resistor is determined by the current-sinking capability of the driver.

.

Distributed VCC and GND pins minimize high-speed switching noise

.

IOFF Supports partial-power-down mode operation

.

Flow-through architecture optimizes PCB layout

.

Latch-up performance exceeds 500mA per JESD 17

.

A-port outputs have equivalent 25R series resistors, so no external resistors are required

.

Green product and no Sb/Br
