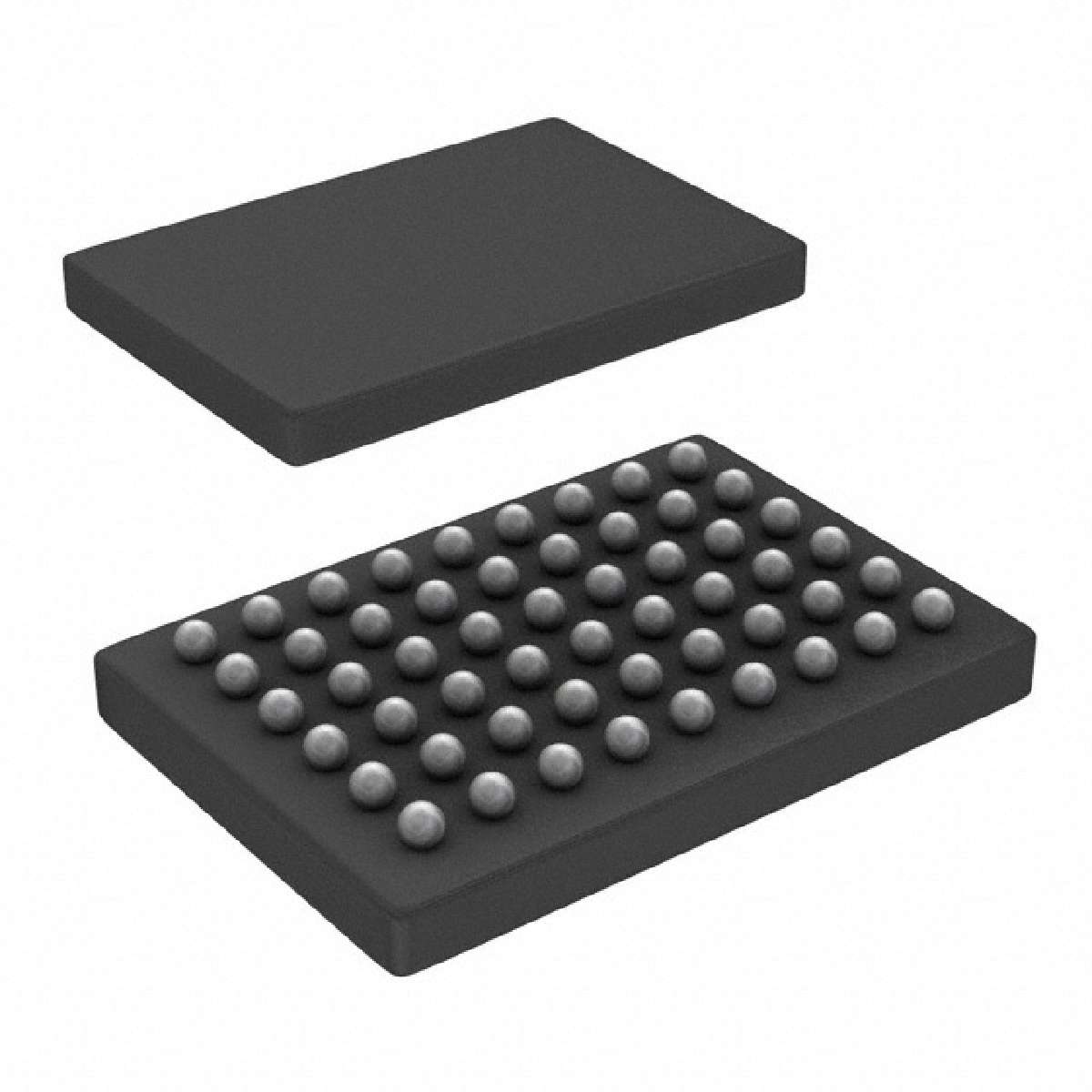

SN74LVC16245AGRDR

具有三态输出的16位总线收发器 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS

DESCRIPON/ORDERING INFORMATION

This 16-bit dual-octal noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC16245A is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements. This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable OE input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC

through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

FEATURES

• Member of the Texas Instruments Widebus™ Family

• Operates From 1.65 V to 3.6 V

• Inputs Accept Voltages to 5.5 V

• Max tpd of 4 ns at 3.3 V

• Typical VOLP Output Ground Bounce

  <0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV Output VOH Undershoot

   >2 V at VCC = 3.3 V, TA = 25°C

• Supports Mixed-Mode Signal Operation on All Ports 5-V Input/Output Voltage With 3.3-V VCC

• Ioff Supports Partial-Power-Down Mode Operation

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101
