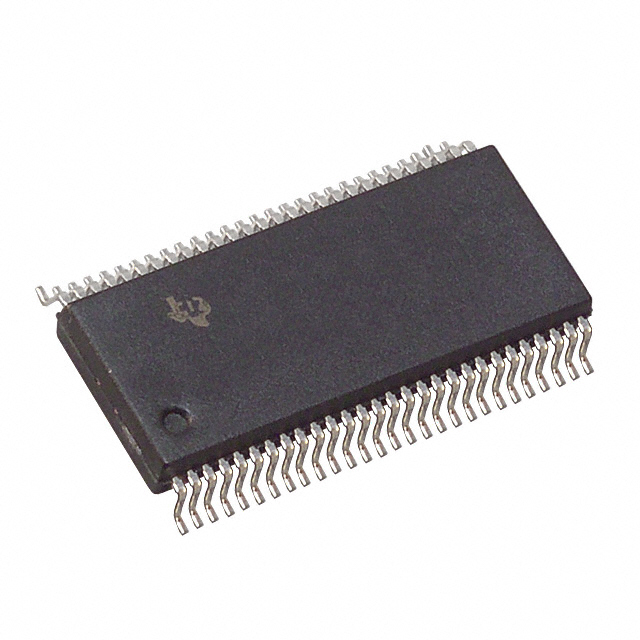

SN74LVTH16543DLR图片9

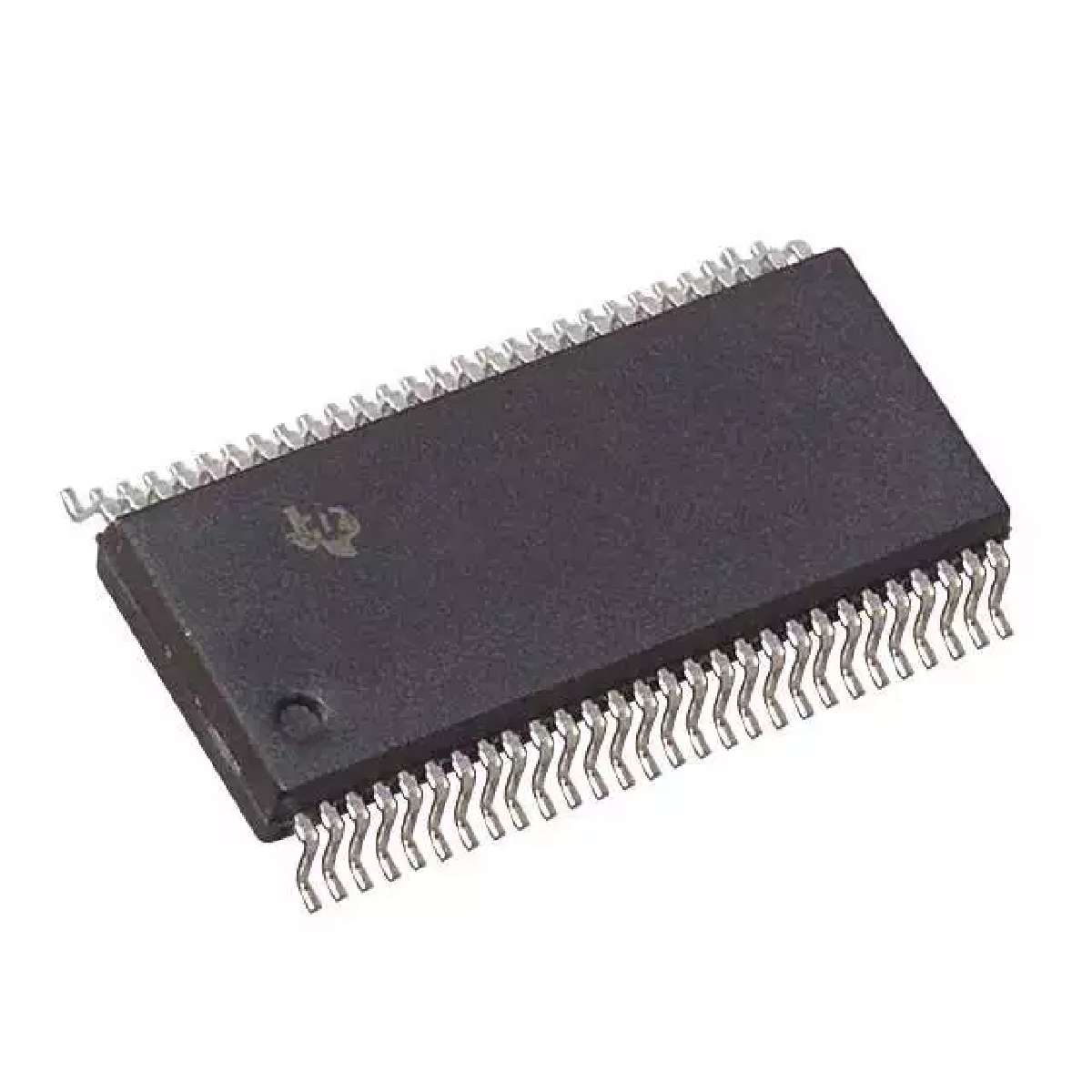

SN74LVTH16543DLR图片10
SN74LVTH16543DLR图片11

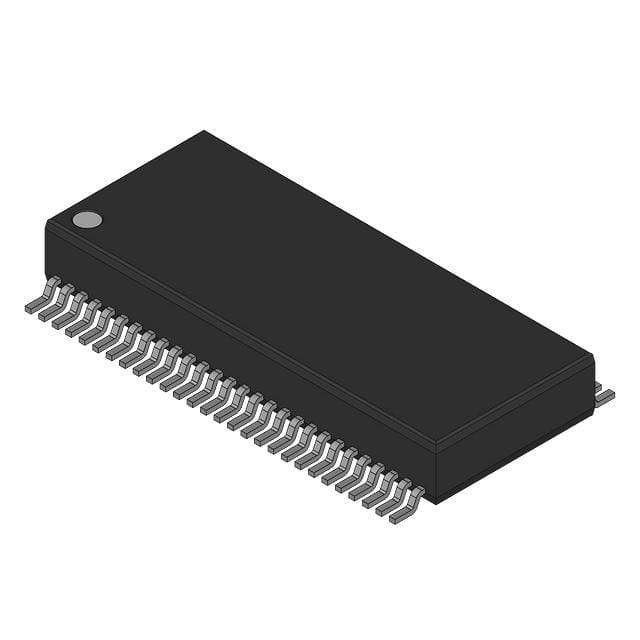

SN74LVTH16543DLR图片12
SN74LVTH16543DLR概述

3.3 -V ABT 16位寄存收发器,三态输出 3.3-V ABT 16-BIT REGISTERED TRANSCEIVERS WITH 3-STATE OUTPUTS

The "LVTH16543 devices are 16-bit registered transceivers designed for low-voltage 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as two 8-bit transceivers or one 16-bit transceiver. Separate latch-enable LEAB\ or LEBA\\\\ and output-enable OEAB\ or OEBA\\\\ inputs are provided for each register to permit independent control in either direction of data flow.

The A-to-B enable CEAB\\\\ input must be low to enter data from A or to output data from B. If CEAB\ is low and LEAB\ is low, the A-to-B latches are transparent; a subsequent low-to-high transition of LEAB\ puts the A latches in the storage mode. With CEAB\ and OEAB\ both low, the 3-state B outputs are active and reflect the data present at the output of the A latches. Data flow from B to A is similar but requires using the CEBA\, LEBA\, and OEBA\ inputs.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

When VCC is between 0 and 1.5 V, the devices are in the high-impedance state during power up or power down. However, to ensure the high-impedance state above 1.5 V, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

These devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

The SN54LVTH16543 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74LVTH16543 is characterized for operation from -40°C to 85°C.

SN74LVTH16543DLR中文资料参数规格
技术参数

电源电压DC 3.30 V

通道数 16

位数 16

电压波节 3.30 V, 2.70 V

输出电流驱动 -500 µA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.7V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 56

封装 SSOP-56

外形尺寸

封装 SSOP-56

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74LVTH16543DLR引脚图与封装图

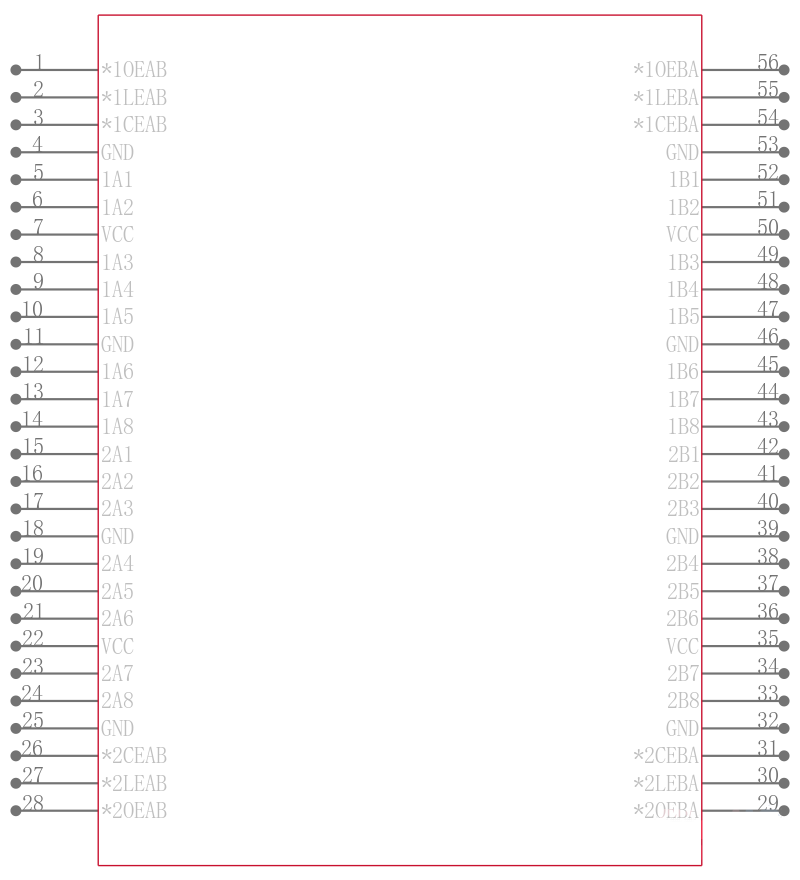

SN74LVTH16543DLR引脚图
SN74LVTH16543DLR封装焊盘图
在线购买SN74LVTH16543DLR
型号: SN74LVTH16543DLR
制造商: TI 德州仪器
描述:3.3 -V ABT 16位寄存收发器,三态输出 3.3-V ABT 16-BIT REGISTERED TRANSCEIVERS WITH 3-STATE OUTPUTS
