具有三态输出的16位总线收发器 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS
This 16-bit dual-octal noninverting bus transceiver is operational at 0.8-V to 2.7-V VCC, but is designed specifically for 1.65-V to 1.95-V VCC operation.
The SN74AUC16245 is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.
This device can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control DIR input. The output-enable OE\ input can be used to disable the device so that the buses are effectively isolated.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
电源电压DC 800mV ~ 2.70V
输出接口数 16
电路数 2
通道数 16
位数 16
传送延迟时间 1.90 ns
静态电流 20.0 µA
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
安装方式 Surface Mount
引脚数 48

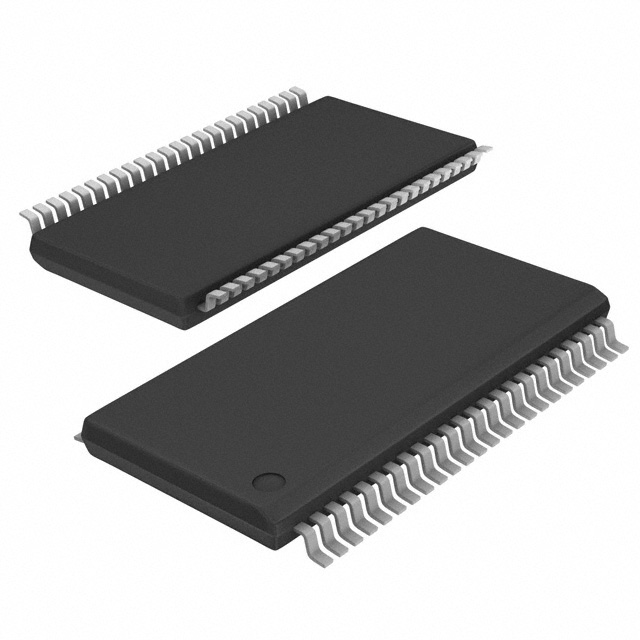

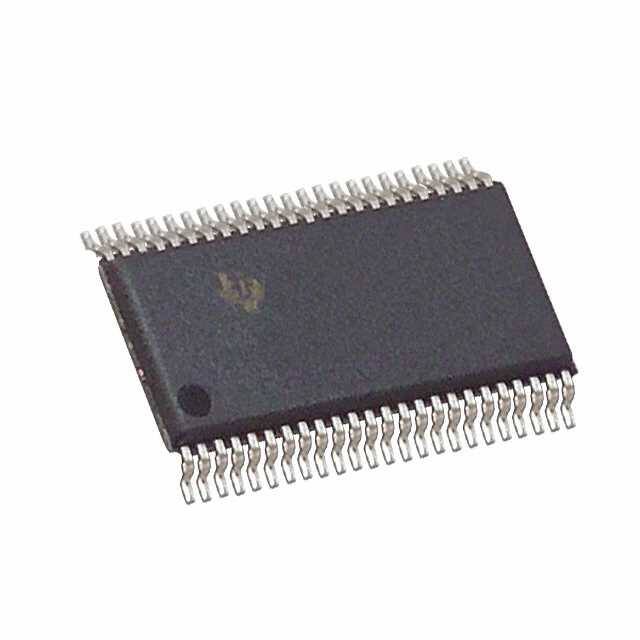

封装 TVSOP-48
长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUC16245DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUC16244GQLR 德州仪器 | 完全替代 | SN74AUC16245DGVR和SN74AUC16244GQLR的区别 |
SN74AUC16240DGGR 德州仪器 | 类似代替 | SN74AUC16245DGVR和SN74AUC16240DGGR的区别 |
