1A 至 1.5A,Vishay Semiconductor来自 Vishay Semiconductor 的一系列肖特基整流器。 这些二极管具有极低的正向电压降和非常快的切换作用。 肖特基二极管的反向恢复时间非常短且适用于需要快速切换和低功耗的应用。### 肖特基整流器,Vishay Semiconductor
**Schottky Rectifiers, 1A to 1.5A, **
A range of Schottky Rectifiers from Vishay Semiconductor. These diodes exhibit very low forward voltage drop with a very fast switching action. The reverse recovery times of Schottky diodes are extremely short and they are suitable for applications requiring fast switching and low power loss.
得捷:
DIODE SCHOTTKY 50V 1A DO204AL
欧时:
### 高性能肖特基整流器,1A 至 1.5A,Vishay Semiconductor来自 Vishay Semiconductor 的一系列肖特基整流器。 这些二极管具有极低的正向电压降和非常快的切换作用。 肖特基二极管的反向恢复时间非常短且适用于需要快速切换和低功耗的应用。### 肖特基整流器,Vishay Semiconductor
艾睿:
Diode Schottky 50V 1A 2-Pin DO-204AL T/R
Allied Electronics:

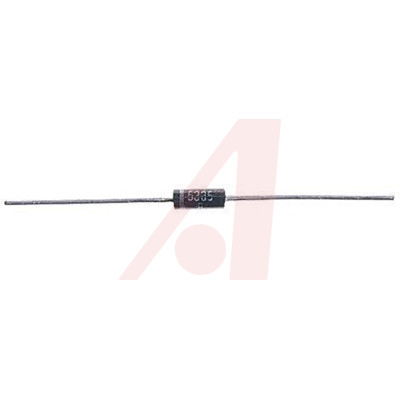

SB150-E3/54, Schottky Diode, 50V 1A, 2-Pin DO-204AL
安富利:
Diode Schottky 50V 1A 2-Pin DO-204AL T/R
富昌:
SB150 系列 50 V 1 A 通孔 肖特基势垒 整流器 - DO-204AL DO-41
Chip1Stop:
Diode Schottky 50V 1A 2-Pin DO-204AL T/R
输出电流 ≤1.00 A
正向电压 0.65 V
极性 Standard
正向电流 1 A
最大正向浪涌电流(Ifsm) 50 A
正向电流Max 1 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Through Hole
引脚数 2
封装 DO-204AL
长度 5.2 mm
宽度 2.7 mm
高度 2.7 mm
封装 DO-204AL
工作温度 -65℃ ~ 150℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SB150-E3/54 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SB150A-E3/54 威世 | 类似代替 | SB150-E3/54和SB150A-E3/54的区别 |
VS-11DQ05 威世 | 类似代替 | SB150-E3/54和VS-11DQ05的区别 |
VS-MBR150TR 威世 | 类似代替 | SB150-E3/54和VS-MBR150TR的区别 |
