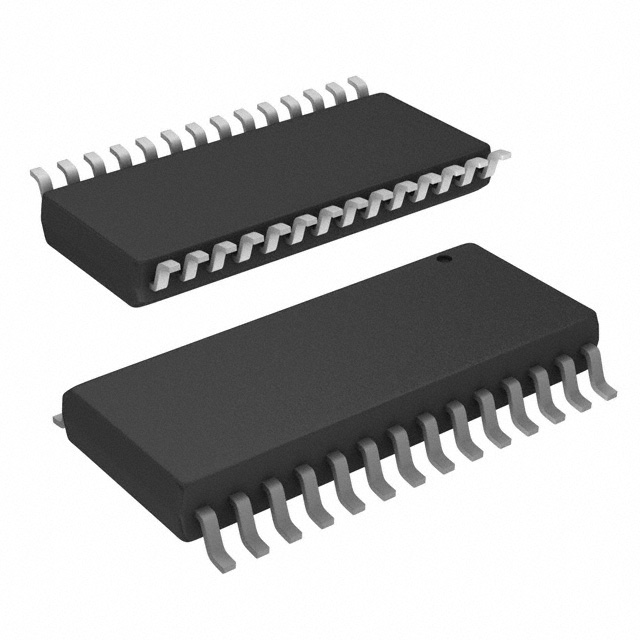

SN74ABT8543DW图片1

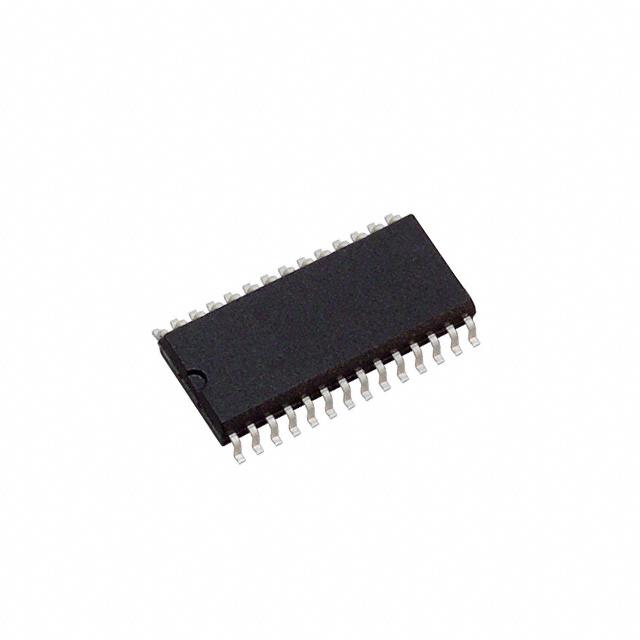

SN74ABT8543DW图片2
SN74ABT8543DW图片3
SN74ABT8543DW图片4
SN74ABT8543DW图片5
SN74ABT8543DW图片6
SN74ABT8543DW图片7
SN74ABT8543DW图片8
SN74ABT8543DW图片9
SN74ABT8543DW图片10
SN74ABT8543DW图片11
SN74ABT8543DW图片12
SN74ABT8543DW图片13
SN74ABT8543DW概述

八进制挂号总线收发器扫描测试设备 SCAN TEST DEVICES WITH OCTAL REGISTERED BUS TRANSCEIVERS

The "ABT8543 scan test devices with octal registered bus transceivers are members of the Texas Instruments SCOPETM testability integrated-circuit family. This family of devices supports IEEE Standard 1149.1-1990 boundary scan to facilitate testing of complex circuit-board assemblies. Scan access to the test circuitry is accomplished via the 4-wire test access port TAP interface.

In the normal mode, these devices are functionally equivalent to the "F543 and "ABT543 octal registered bus transceivers. The test circuitry can be activated by the TAP to take snapshot samples of the data appearing at the device pins or to perform a self-test on the boundary-test cells. Activating the TAP in normal mode does not affect the functional operation of the SCOPETM octal registered bus transceivers.

Data flow in each direction is controlled by latch-enable and , chip-enable and , and output-enable and inputs. For A-to-B data flow, the device operates in the transparent mode when and are both low. When either or is high, the A data is latched. The B outputs are active when and are both low. When either or is high, the B outputs are in the high-impedance state. Control for B-to-A data flow is similar to that for A-to-B, but uses , , and .

In the test mode, the normal operation of the SCOPETM registered bus transceiver is inhibited and the test circuitry is enabled to observe and control the I/O boundary of the device. When enabled, the test circuitry performs boundary-scan test operations as described in IEEE Standard 1149.1-1990.

Four dedicated test pins control the operation of the test circuitry: test data input TDI, test data output TDO, test mode select TMS, and test clock TCK. Additionally, the test circuitry performs other testing functions such as parallel-signature analysis PSA on data inputs and pseudo-random pattern generation PRPG from data outputs. All testing and scan operations are synchronized to the TAP interface.

The SN54ABT8543 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT8543 is characterized for operation from -40°C to 85°C.

SN74ABT8543DW中文资料参数规格
技术参数

电源电压DC 4.50V ~ 5.50V

输出接口数 8

电路数 8

通道数 8

位数 8

传送延迟时间 5.50 ns

电压波节 5.00 V

耗散功率 1700 mW

输出电流驱动 -500 µA

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 28

封装 SOIC-28

外形尺寸

封装 SOIC-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

SN74ABT8543DW引脚图与封装图
SN74ABT8543DW引脚图
SN74ABT8543DW封装图
SN74ABT8543DW封装焊盘图
