SN74LVTH18646APMG4

特定功能逻辑 3.3-V ABT w/18-Bit Trnscvr & Register

description

The ’LVTH18646A and ’LVTH182646A scan test devices with 18-bit bus transceivers and registers are members of the Texas Instruments SCOPE testability integrated-circuit family. This family of devices supports IEEE Std 1149.1-1990 boundary scan to facilitate testing of complex circuit board assemblies. Scan access to the test circuitry is accomplished via the 4-wire test access port TAP interface.

Additionally, these devices are designed specifically for low-voltage 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment.

• Members of the Texas Instruments SCOPE™ Family of Testability Products

• Members of the Texas Instruments Widebus™ Family

• State-of-the-Art 3.3-V ABT Design Supports Mixed-Mode Signal Operation 5-V Input and Output Voltages With 3.3-V VCC

• Support Unregulated Battery Operation Down to 2.7 V

• Include D-Type Flip-Flops and Control Circuitry to Provide Multiplexed Transmission of Stored and Real-Time Data

• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

• B-Port Outputs of ’LVTH182646A Devices Have Equivalent 25-Ω Series Resistors, So No External Resistors Are Required

• Compatible With IEEE Std 1149.1-1990 JTAG Test Access Port and Boundary-Scan Architecture

• SCOPE Instruction Set

   – IEEE Std 1149.1-1990 Required Instructions and Optional CLAMP and HIGHZ

   – Parallel-Signature Analysis at Inputs

   – Pseudo-Random Pattern Generation From Outputs

   – Sample Inputs/Toggle Outputs

   – Binary Count From Outputs

   – Device Identification

   – Even-Parity Opcodes

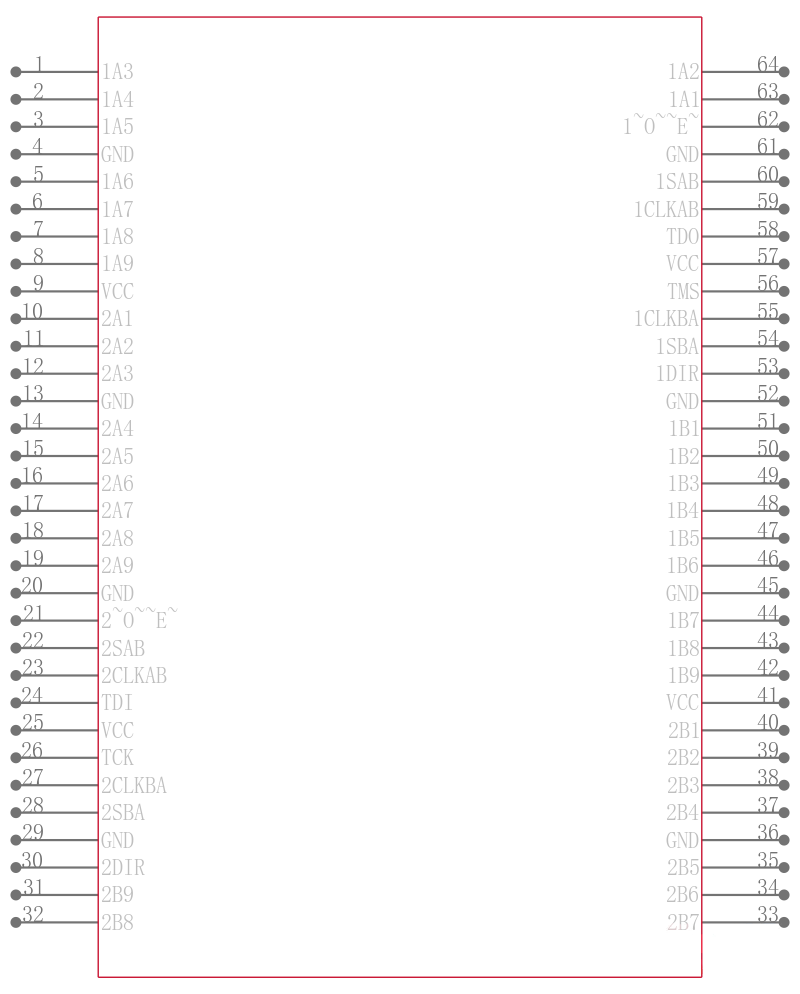

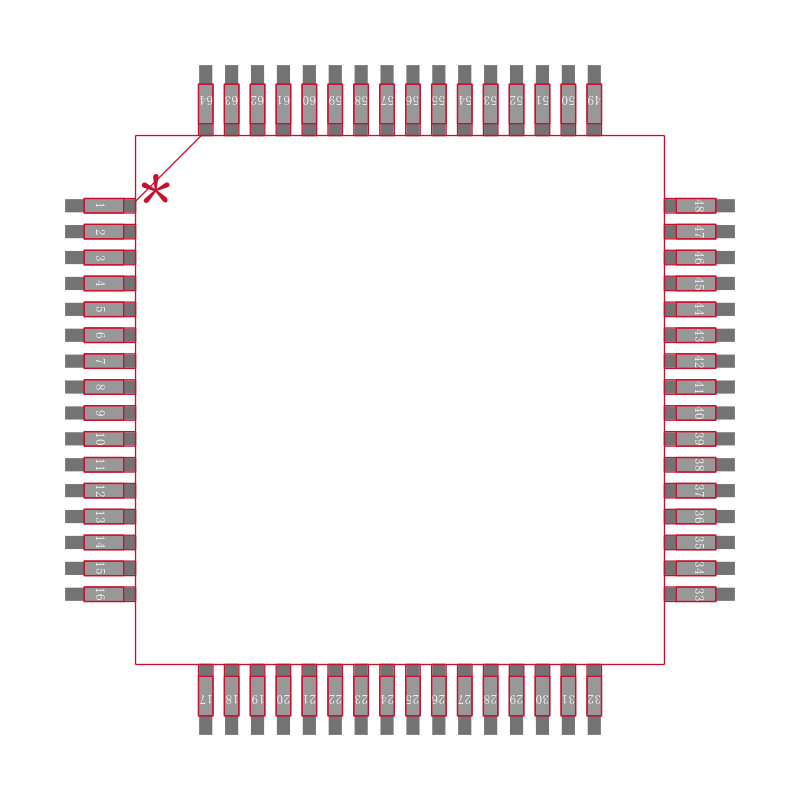

• Packaged in 64-Pin Plastic Thin Quad Flat PM Packages Using 0.5-mm

   Center-to-Center Spacings and 68-Pin

   Ceramic Quad Flat HV Packages Using

   25-mil Center-to-Center Spacings
