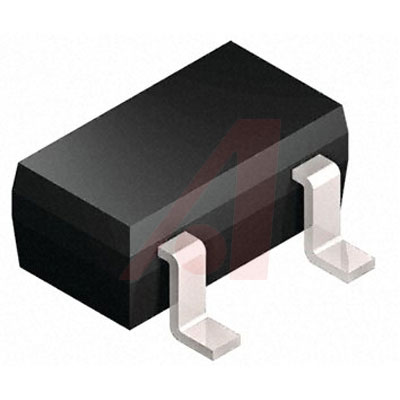

SMMUN2216LT3G

ON Semiconductor### 标准带 S 或 NSV 前缀的制造商部件号具有汽车资格，符合 AEC-Q101 标准。### 数字晶体管，On Semiconductor配备电阻器的双极性晶体管也称为“数字晶体管”或“偏流电阻器的晶体管”，包含一个或两个集成电阻器。 单一系列输入电阻器，或两个电阻器的分压器能直接从数字源驱动这些设备。 提供单和双晶体管型号。

Digital Transistors BRT

R1 = 4.7 kΩ, R2 = kΩ

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor BRT contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.

Features

• Simplifies Circuit Design

• Reduces Board Space

• Reduces Component Count

• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
