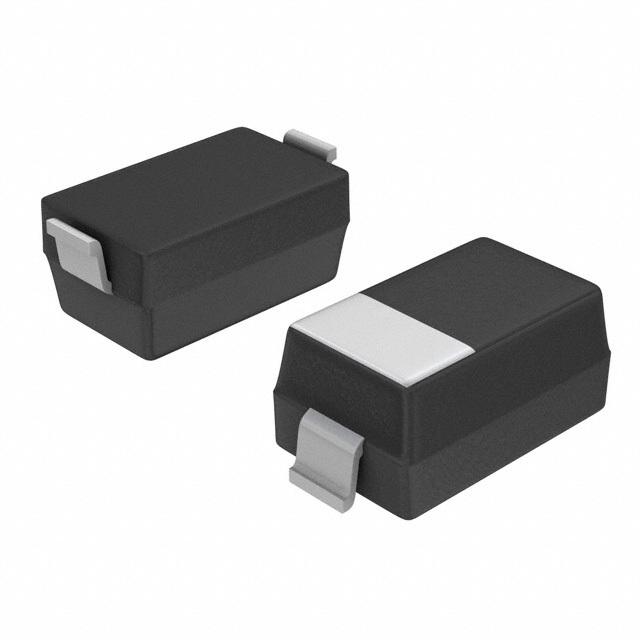

单管二极管 齐纳, 36 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
Zener Diode 36V 500mW ±5% Surface Mount SOD-123
得捷:
DIODE ZENER 36V 500MW SOD123
立创商城:
SZMMSZ5258BT1G
贸泽:
稳压二极管 ZEN REG 0.5W 36V
e络盟:
单管二极管 齐纳, 36 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
艾睿:
Now you can operate a diode in its reverse breakdown region by using a voltage regulator SZMMSZ5258BT1G zener diode from ON Semiconductor. Its maximum power dissipation is 500 mW. Its test current is 3.4 mA. Its maximum leakage current is 0.1 μA. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This zener device has a nominal voltage of 36 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C.
安富利:
Diode Zener Single 36V 5% 500mW 2-Pin SOD-123 T/R
Chip1Stop:
Diode Zener Single 36V 5% 500mW Automotive 2-Pin SOD-123 T/R
容差 ±5 %
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 3.4 mA
稳压值 36 V
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.69 mm
宽度 1.6 mm
高度 1.17 mm
封装 SOD-123-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZMMSZ5258BT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ5258BT1G 安森美 | 完全替代 | SZMMSZ5258BT1G和MMSZ5258BT1G的区别 |
SZMMSZ5258ET1G 安森美 | 完全替代 | SZMMSZ5258BT1G和SZMMSZ5258ET1G的区别 |
MMSZ36T1G 安森美 | 类似代替 | SZMMSZ5258BT1G和MMSZ36T1G的区别 |
