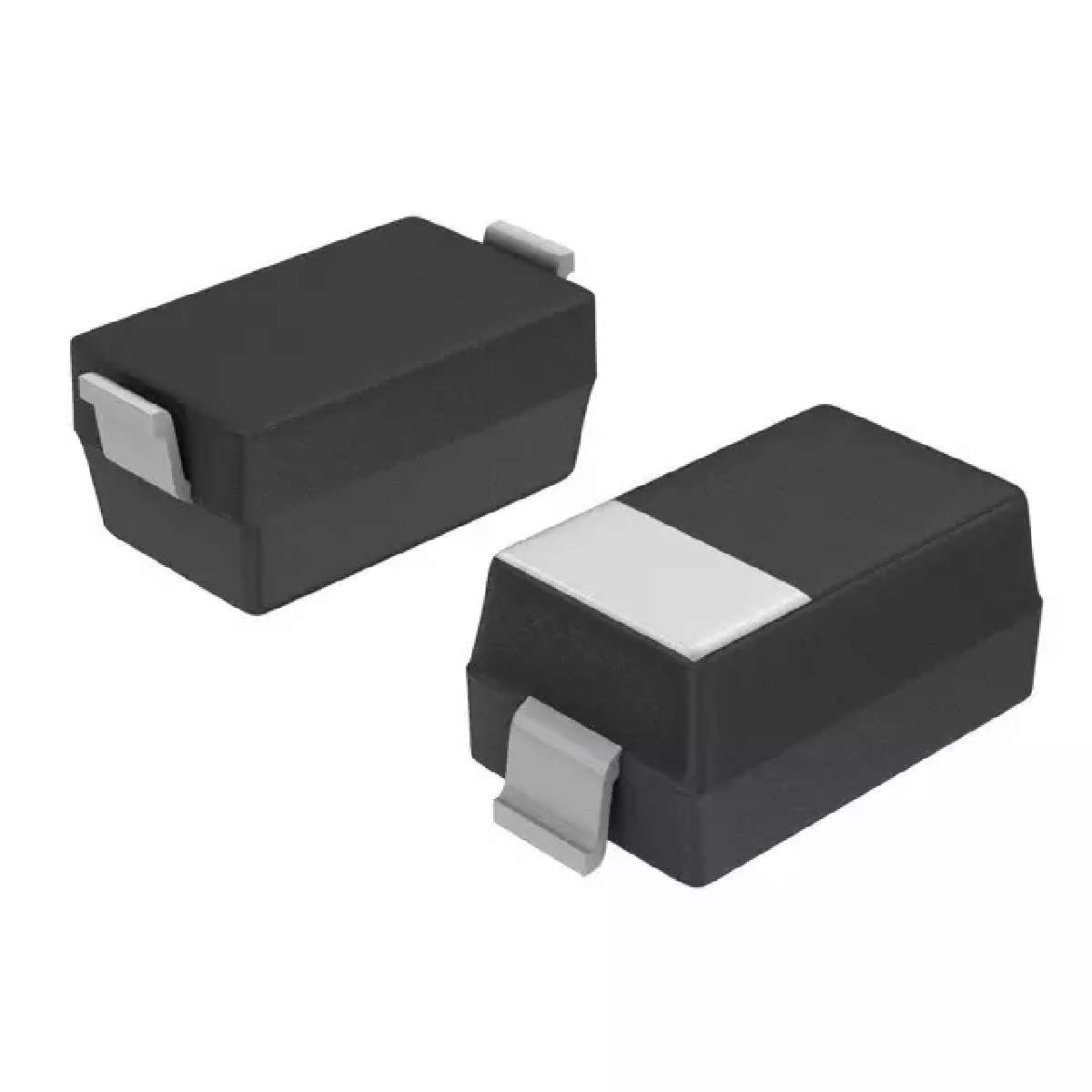

单管二极管 齐纳, 3.9 V, 500 mW, SOD-123, 2 引脚, 150 °C
Need to operate a diode in the reverse-breakdown region? No worries, use a voltage regulator zener diode from . Its maximum leakage current is 5 μA. Its test current is 0.05 mA. Its maximum power dissipation is 500 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. This zener device has a nominal voltage of 3.9 V.
容差 ±5 %
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 0.05 mA
稳压值 3.9 V
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.69 mm
宽度 1.6 mm
高度 1.17 mm
封装 SOD-123-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZMMSZ4686T1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ4686T1G 安森美 | 完全替代 | SZMMSZ4686T1G和MMSZ4686T1G的区别 |
MMSZ5228BT1G 安森美 | 类似代替 | SZMMSZ4686T1G和MMSZ5228BT1G的区别 |
MMSZ5227BT1G 安森美 | 类似代替 | SZMMSZ4686T1G和MMSZ5227BT1G的区别 |
