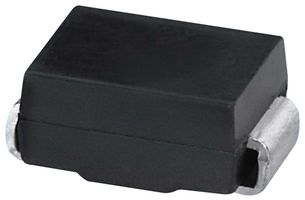

MICRO COMMERCIAL COMPONENTS SK34A-TP 肖特基整流二极管, 3A, 40V, DO-214AC
肖特基 3A 表面贴装型 SMA
得捷:
DIODE SCHOTTKY 40V 3A DO214AC
贸泽:
Schottky Diodes & Rectifiers 3.0A 40V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SK34A-TP rectifier from Micro Commercial Components. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its peak non-repetitive surge current is 80 A, while its maximum continuous forward current is 3 A. This rectifier has a minimum operating temperature of -50 °C and a maximum of 125 °C. It is made in a single configuration.
Chip1Stop:
Diode Schottky 40V 3A 2-Pin HSMA T/R
Verical:
Rectifier Diode Schottky 40V 3A 2-Pin HSMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SK34A-TP Schottky Rectifier, 40 V, 3 A, Single, DO-214AC, 2 Pins, 500 mV
Win Source:
DIODE SCHOTTKY 40V 3A SMA
额定电压DC 40.0 V
额定电流 3.00 A
电容 45.0 pF
输出电流 ≤3.00 A
针脚数 2
正向电压 0.5 V
极性 Standard
热阻 10℃/W RθJL
正向电流 3 A
最大正向浪涌电流（Ifsm） 80 A
正向电压Max 500 mV
正向电流Max 3 A
工作温度Max 125 ℃
工作温度Min -50 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.57 mm
宽度 2.84 mm
高度 2.95 mm
封装 DO-214AC
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SK34A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SK34A-LTP 美微科 | 类似代替 | SK34A-TP和SK34A-LTP的区别 |
B340A-13-F 美台 | 功能相似 | SK34A-TP和B340A-13-F的区别 |
CD214A-B340LF 伯恩斯 | 功能相似 | SK34A-TP和CD214A-B340LF的区别 |
