稳压二极管

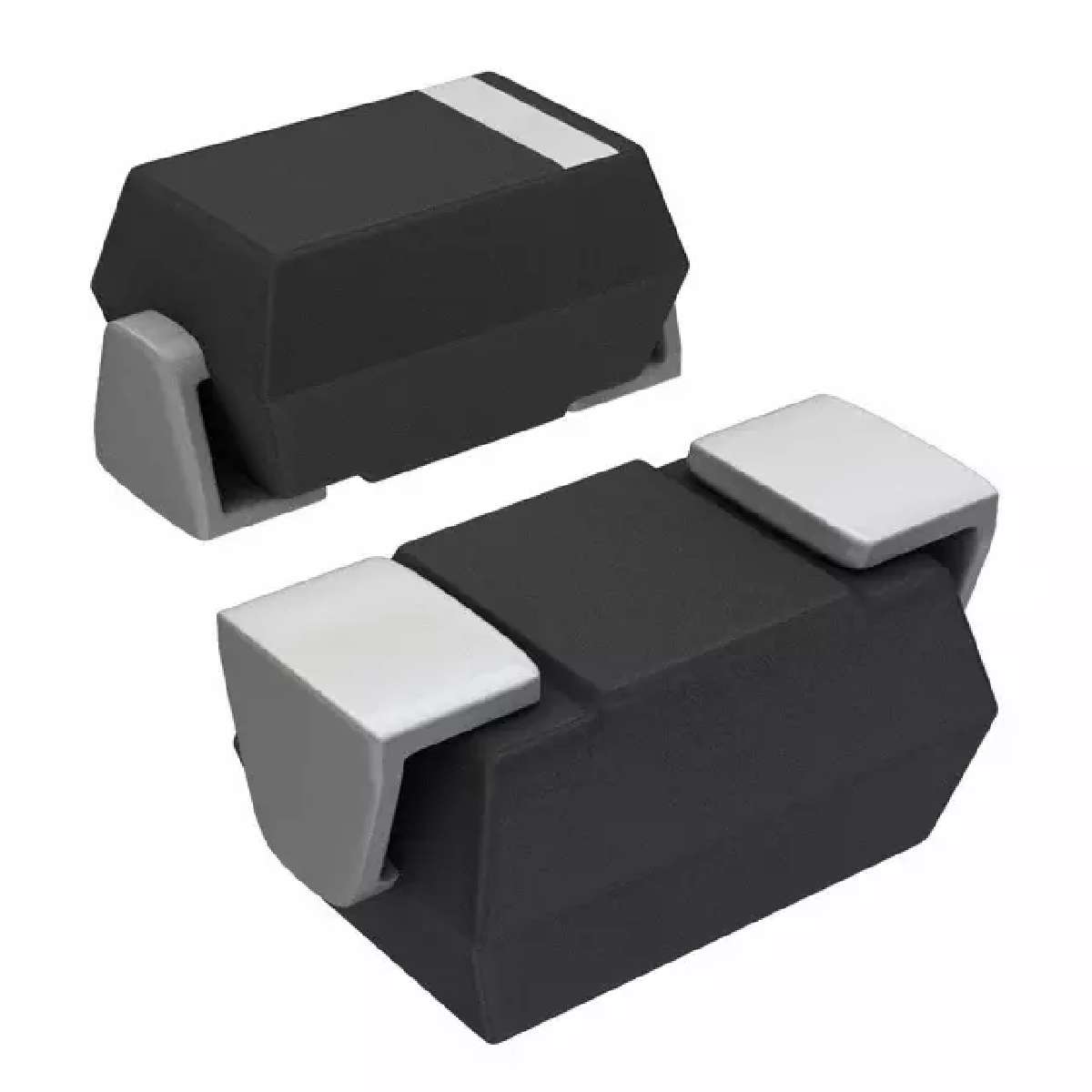

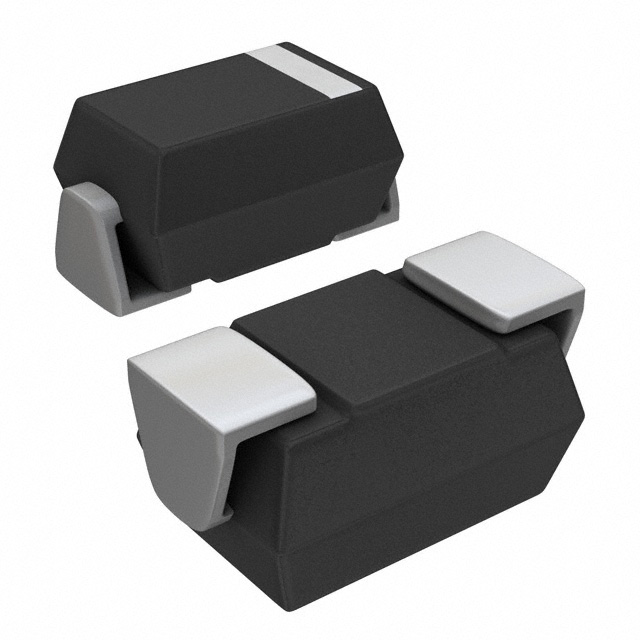

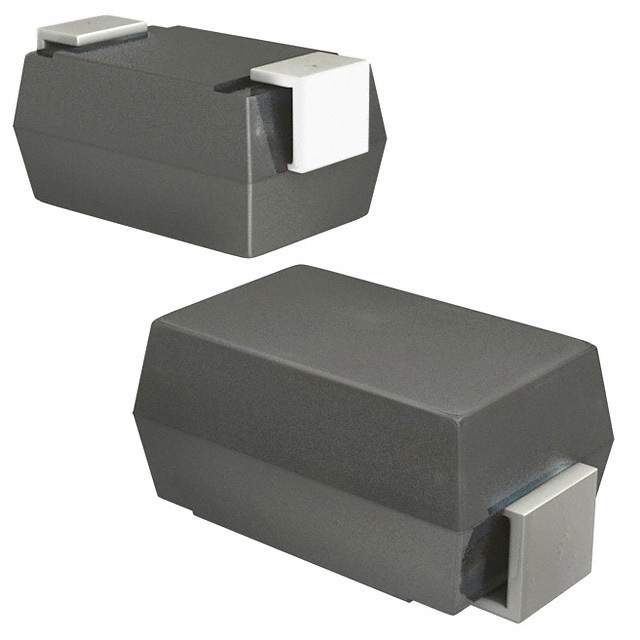

- 齐纳 ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 15V 1W DO214AC
立创商城:
15V ±5% 1W
艾睿:
This SMAJ4744A-TP zener diode from Micro Commercial Components is perfect for blocking a voltage. Its test current is 17 mA. Its maximum power dissipation is 1000@Ta=50C mW. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It is made in a single configuration. This zener device has a nominal voltage of 15 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 150 °C.
Chip1Stop:
Diode Zener Single 15V 5% 1W 2-Pin SMA T/R
Verical:
Zener Diode Single 15V 5% 14Ohm 1000mW 2-Pin SMA T/R
AMEYA360:
DIODE ZENER 15V 1W DO214AC
Win Source:
DIODE ZENER 15V 1W DO214AC / Zener Diode 15 V 1 W ±5% Surface Mount DO-214AC SMA
额定电压DC 15.0 V
容差 ±5 %
额定功率 1.00 W
正向电压 1.2V @100mA
耗散功率 1 W
测试电流 17 mA
稳压值 15 V
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2

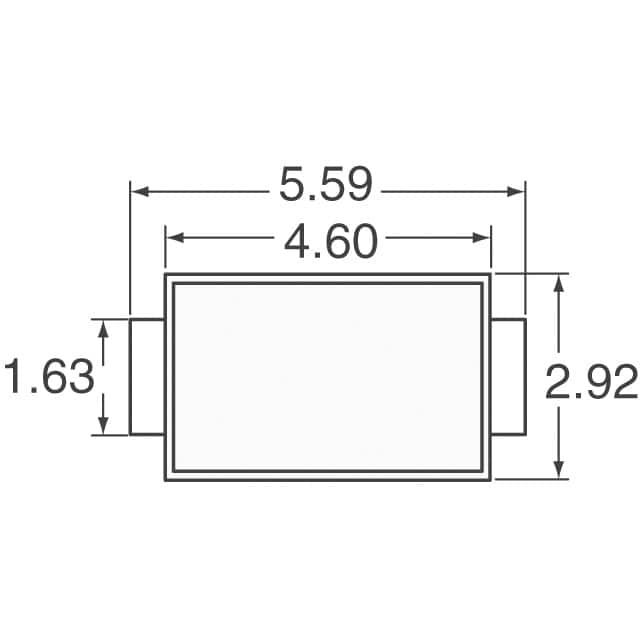

长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ4744A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SML4744A-E3/61 威世 | 类似代替 | SMAJ4744A-TP和SML4744A-E3/61的区别 |
SMAZ15-TP 美微科 | 类似代替 | SMAJ4744A-TP和SMAZ15-TP的区别 |
DL4744A-TP 美微科 | 功能相似 | SMAJ4744A-TP和DL4744A-TP的区别 |
