STM32F427IIH6

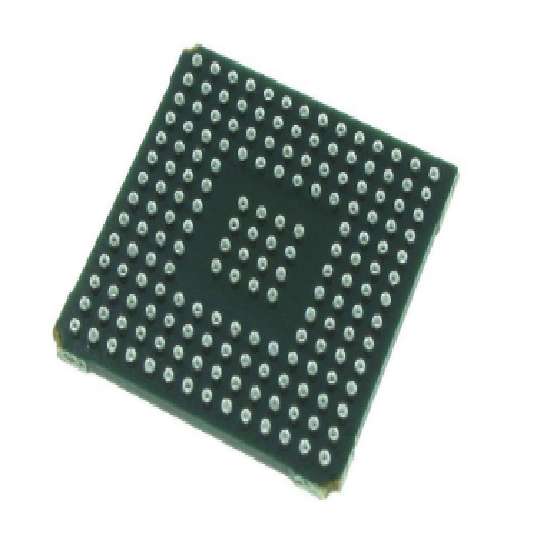

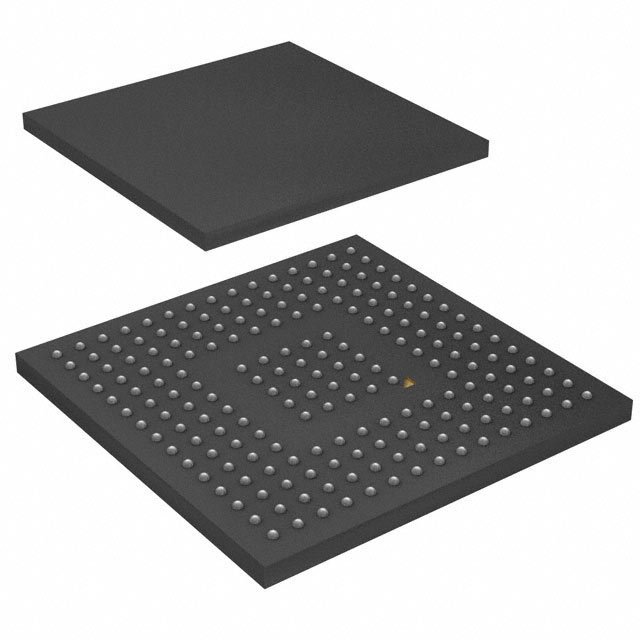

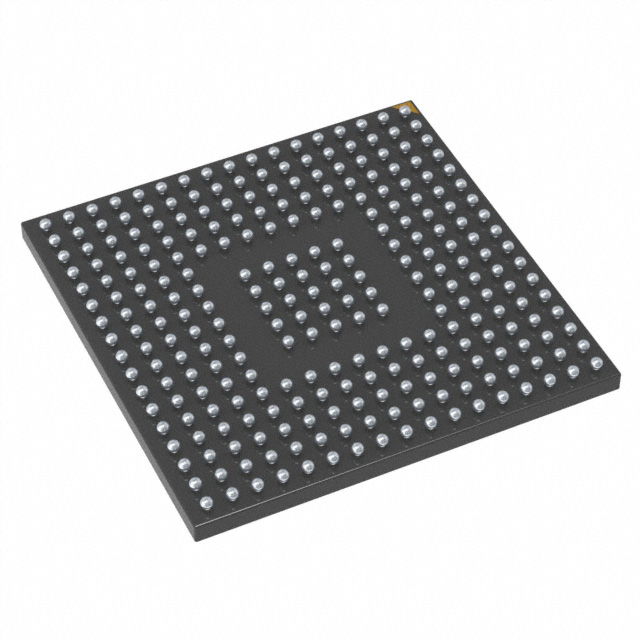

STMICROELECTRONICS  STM32F427IIH6  微控制器, 32位, 高性能, ARM 皮质-M4, 180 MHz, 2 MB, 256 KB, 176 引脚, UFBGA

The is a 32-bit ARM Cortex-M4 high performance Microcontroller Unit features a floating point unit single precision which supports all ARM® single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit which enhances application security. It incorporates high-speed embedded memories, up to 4kB of backup SRAM and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This device offers three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16bit timers and two general-purpose 32-bit timers.

.

LCD parallel interface, 8080/6800 modes

.

Clock, reset and supply management - POR, PDR, PVD and BOR

.

Low power - Sleep, stop and standby modes

.

General-purpose DMA - 16-stream DMA controller with FIFOs and burst support

.

Debug mode - SWD and JTAG interfaces, Cortex-M4 trace Macrocell™

.

Advanced connectivity - USB 2.0 full-speed device/host/OTG controller with on-chip PHY

.

True random number generator

.

CRC calculation unit

.

RTC - sub second accuracy, hardware calendar

.

96-bit Unique ID

ESD sensitive device, take proper precaution while handling the device.
