STM32L152ZCT6

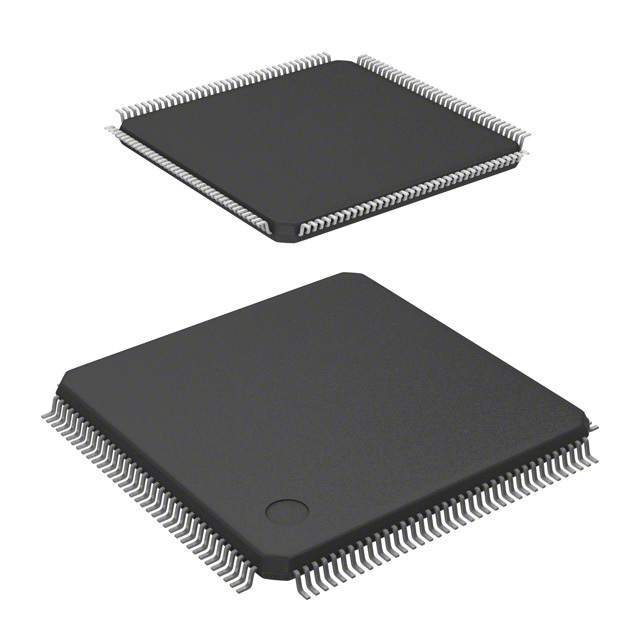

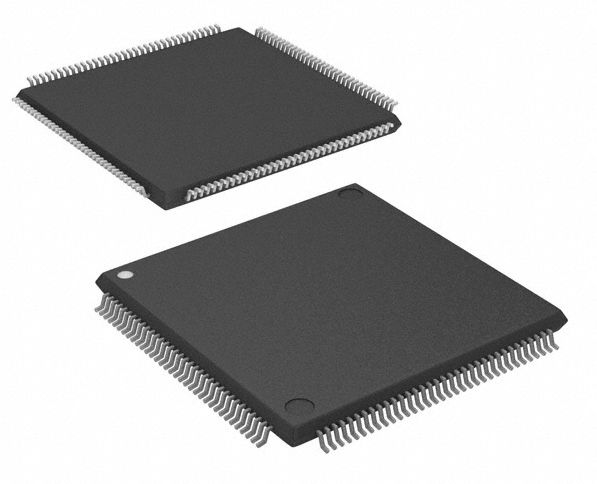

STMICROELECTRONICS  STM32L152ZCT6  微控制器, 32位, 超低功率, ARM 皮质-M3, 32 MHz, 256 KB, 32 KB, 144 引脚, LQFP

The medium density plus ultra-low-power incorporates the connectivity power of the universal serial bus USB with the high-performance ARM Cortex™-M3 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit MPU, high-speed embedded memories and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32L151QCH6 medium density plus devices offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases. Moreover, the medium density plus devices contain standard and advanced communication interfaces. They also include a real-time clock and a set of backup registers that remain powered in Standby mode. Finally, the integrated LCD controller has a built-in LCD voltage generator that allows you to drive up to 8 multiplexed LCDs with contrast independent of the supply volta

.

Ultra-low-power platform

.

Core: ARM 32-bit Cortex™-M3 CPU

.

Reset and supply management

.

Clock sources

.

Pre-programmed bootloader USB and USART supported

.

Development support Serial wire debug supported TAG and trace supported

.

Memories 256KB Flash with ECC32 KB RAM8 KB of true EEPROM with ECC128 Byte Backup Register

.

LCD Driver for up to 8x40 segments

.

Rich analogue peripherals down to 1.8 V

.

DMA controller 12x channels

.

9x peripherals communication interface

.

11x timers

.

Up to 34 capacitive sensing channels

.

CRC calculation unit, 96-bit unique ID
