SMA 39V 1W
- 齐纳 39 V 1 W ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 39V 1W DO214AC
立创商城:
SMAJ4754A-TP
艾睿:
If your circuit requires a diode to operate in the reverse breakdown region, then this SMAJ4754A-TP zener diode from Micro Commercial Components is exactly what you need. Its test current is 6.5 mA. Its maximum leakage current is 5 μA. Its maximum power dissipation is 1000@Ta=50C mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C. This zener device has a nominal voltage of 39 V and a voltage tolerance of 5%.
Chip1Stop:
Diode Zener Single 39V 5% 1W 2-Pin SMA T/R
额定电压DC 39.0 V
容差 ±5 %
额定功率 1.00 W
正向电压 1.2V @100mA
耗散功率 1 W
测试电流 6.5 mA
稳压值 39 V
正向电压Max 1.2V @100mA
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

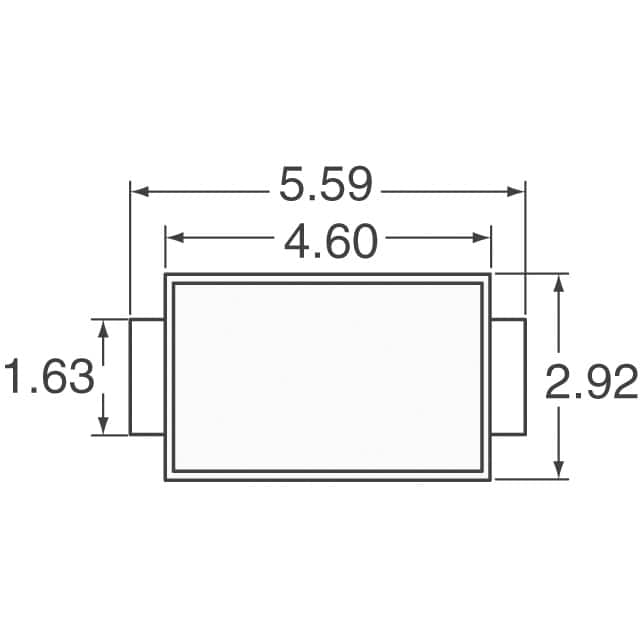

封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ4754A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAZ39-TP 美微科 | 功能相似 | SMAJ4754A-TP和SMAZ39-TP的区别 |
DL4754A-TP 美微科 | 功能相似 | SMAJ4754A-TP和DL4754A-TP的区别 |
SML4754A-E3/5A 威世 | 功能相似 | SMAJ4754A-TP和SML4754A-E3/5A的区别 |
