晶体管 双极预偏置/数字, NPN和PNP执行, 50 V, 100 mA, 47 kohm, 47 kohm, 1 电阻比率
Apply the applications of a traditional bi polar junction transistor, in digital circuits with this npn and PNP digital transistor from , ideal for any digital signal processing circuit! This product"s maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 80@5mA@10 V. It has a maximum collector emitter saturation voltage of 0.25@0.3mA@10mA V. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 385 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It is made in a dual configuration. This transistor has an operating temperature range of -55 °C to 150 °C.
通道数 2
极性 NPN+PNP
耗散功率 0.385 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @5mA, 10V
额定功率Max 187 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 385 mW
安装方式 Surface Mount
引脚数 6

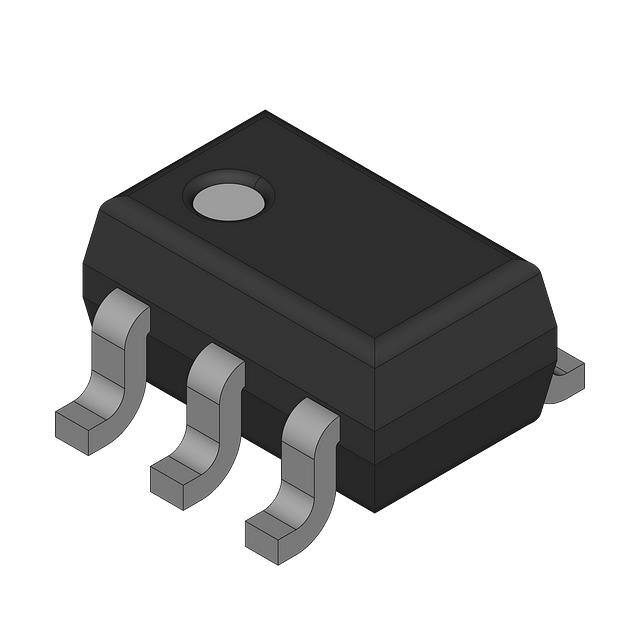

封装 SOT-363-6
封装 SOT-363-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
