SZMM5Z33VT1G

稳压二极管 SOD-523 EUT SNGL PB FREE

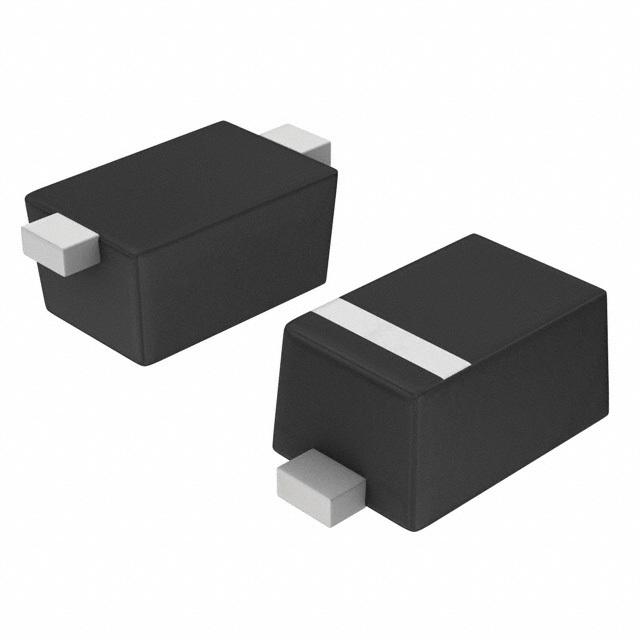

These Zener Diode Voltage Regulators are packaged in the SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables and high density PC boards.

Features

---

 |

.

Standard Zener Breakdown Voltage Range: 2.4V to 75V

.

Steady State Power Rating of 500mW

.

Small Body Outline Dimensions: 0.047in x 0.032in 1.20mm x 0.80mm

.

Low Body Height: 0.028in 0.7mm

.

ESD Rating of Class 3 >16kV Human Body Model

.

Epoxy Meets UL94, VO

.

Cathode Indicated by Polarity Band

.

Lead Finish: 100% Matte Sn Tin

.

Qualified Maximum Reflow Temperature: 260C

.

Device Meets MSL 1 Requirements

.

Pb-Free Packages are Available

.

AEC-Q101 Qualified and PPAP Capable

.

SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
