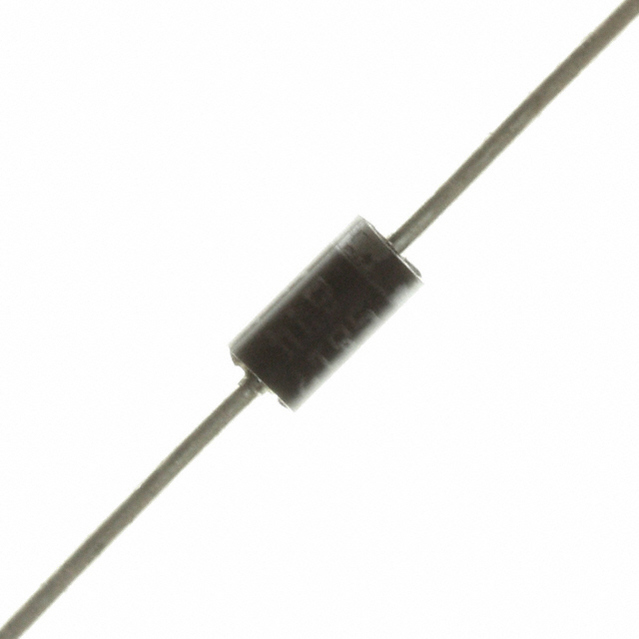

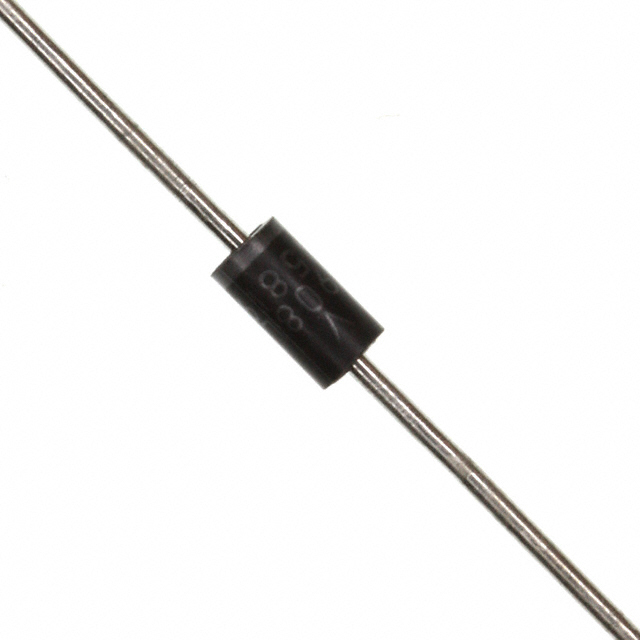

STTH102 系列 1 A 0.97 V 20 ns 高能效 超快 二极管 - DO-41
整流器,1A 至 3A,STMicroelectronics
得捷:
DIODE GEN PURP 200V 1A DO41
欧时:
STMicroelectronics 二极管 STTH102RL 开关, Io=1A, Vrev=200V, 20ns, 2引脚 DO-41封装
立创商城:
200V 1A 12ns
艾睿:
Converting from AC to DC is simple when using a switching diode STTH102RL rectifier from STMicroelectronics. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 1 A. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration.
安富利:
Diode Switching 200V 1A 2-Pin DO-41 T/R
富昌:
STTH102 系列 1 A 0.97 V 20 ns 高效率 超快 二极管 - DO-41
Chip1Stop:
Diode Switching 200V 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 200V 1A 20ns 2-Pin DO-41 T/R
Win Source:
DIODE GEN PURP 200V 1A DO41
额定电压DC 200 V
额定电流 1.00 A
输出电流 ≤1.00 A
正向电压 970mV @1A
极性 Standard
反向恢复时间 20 ns
正向电流 1000 mA
最大正向浪涌电流(Ifsm) 50 A
正向电压Max 970 mV
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.2 mm
宽度 2.71 mm
高度 2.71 mm
封装 DO-41
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH102RL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH102 意法半导体 | 类似代替 | STTH102RL和STTH102的区别 |
UG1D-E3/54 威世 | 功能相似 | STTH102RL和UG1D-E3/54的区别 |
DLM10C 安森美 | 功能相似 | STTH102RL和DLM10C的区别 |
