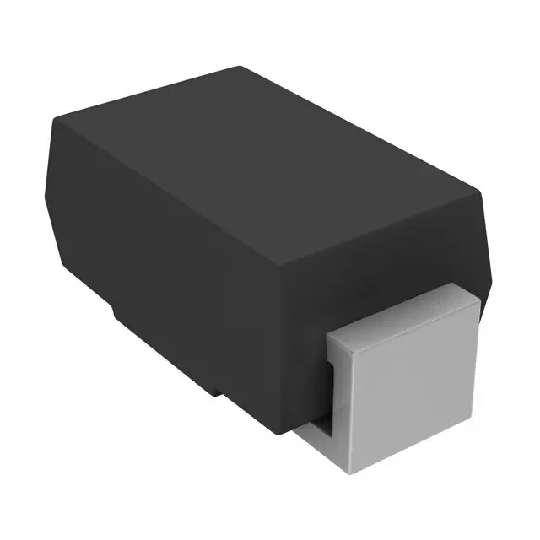

VISHAY SL23-E3/52T. 肖特基整流器, 单, 30 V, 2 A, DO-214AA, 2 引脚, 440 mV
The is a surface-mount Schottky Barrier Rectifier with matte tin-plated leads terminals and UL94V-0 flame rated moulding compound case. The barrier rectifier guard ring for overvoltage protection, high surge current capability, low power losses and high efficiency. Colour band denotes cathode end polarity.
ESD sensitive device, take proper precaution while handling the device.
额定电压DC 30.0 V
额定电流 2.00 A
输出电流 ≤2.00 A
针脚数 2
正向电压 440 mV
极性 Standard
反向恢复时间 30 ns
正向电流 2 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 440 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温Max 125 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.7 mm
宽度 3.8 mm
高度 2.42 mm
封装 DO-214AA
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Power Management, Industrial, Automotive, 电源管理, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SL23-E3/52T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SL23 威世 | 完全替代 | SL23-E3/52T和SL23的区别 |
SL22-E3/52T 威世 | 类似代替 | SL23-E3/52T和SL22-E3/52T的区别 |
SL23HE3/52T 威世 | 类似代替 | SL23-E3/52T和SL23HE3/52T的区别 |
