SS22-TP

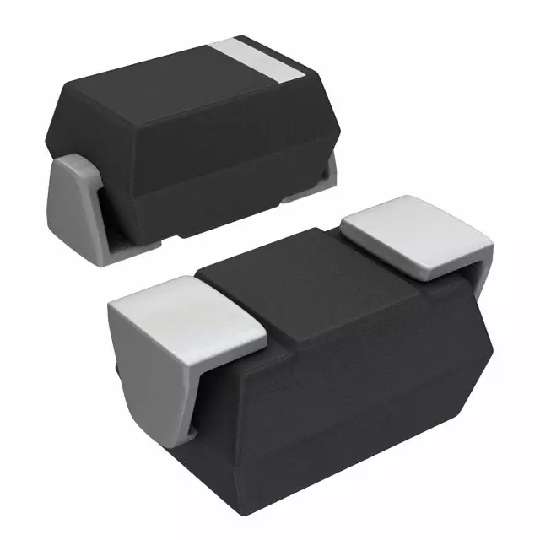

SS22-TP图片1

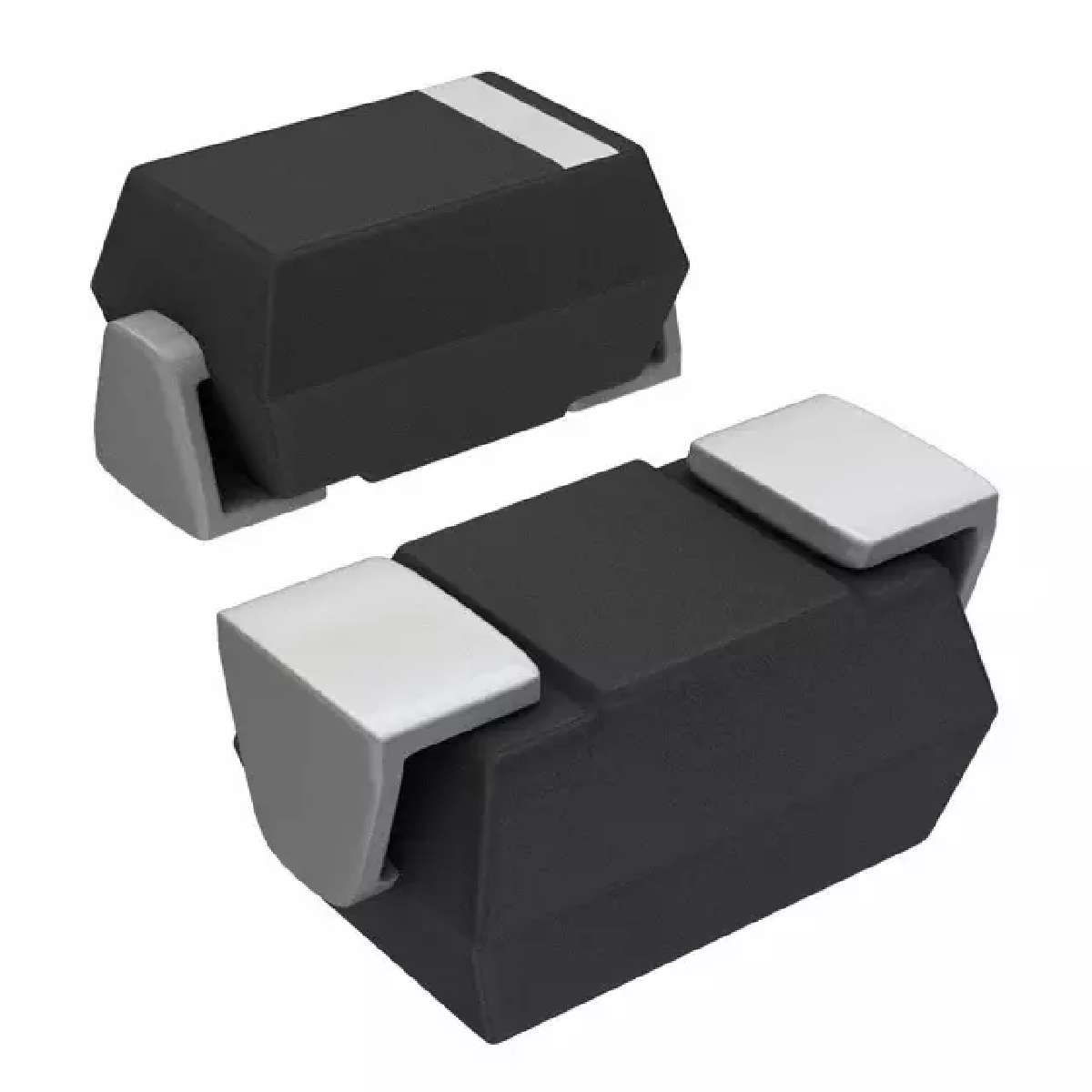

SS22-TP图片2
SS22-TP图片3
SS22-TP图片4
SS22-TP图片5
SS22-TP概述

Rectifier Diode, Schottky, 1 Phase, 1Element, 2A, 20V VRRM, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2Pin

Features

• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

• Low Forward Voltage

• Low Forward Voltage

• Guard Ring Protection

• Epoxy meets UL 94 V-0 flammability rating

• Moisture Sensitivity Level 1


得捷:
DIODE SCHOTTKY 20V 2A DO214AC


艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode SS22-TP rectifier from Micro Commercial Components. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has a minimum operating temperature of -55 °C and a maximum of 125 °C. It is made in a single configuration. Its peak non-repetitive surge current is 50 A, while its maximum continuous forward current is 2 A.


Chip1Stop:
Diode Schottky 20V 2A 2-Pin SMA T/R


Verical:
Rectifier Diode Schottky 20V 2A 2-Pin SMA T/R


SS22-TP中文资料参数规格
技术参数

正向电压 550mV @2A

热阻 15℃/W RθJL

正向电流 2000 mA

正向电压Max 550mV @2A

正向电流Max 2000 mA

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-214AC

外形尺寸

封装 DO-214AC

其他

产品生命周期 Not Recommended

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买SS22-TP
型号: SS22-TP
描述:Rectifier Diode, Schottky, 1 Phase, 1Element, 2A, 20V VRRM, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2Pin
替代型号SS22-TP
型号/品牌 代替类型 替代型号对比

SS22-TP

Micro Commercial Components 美微科

当前型号

当前型号

SS22-LTP

美微科

类似代替

SS22-TP和SS22-LTP的区别

B220A-13-F

美台

功能相似

SS22-TP和B220A-13-F的区别

B220A-13

美台

功能相似

SS22-TP和B220A-13的区别
